2SA1307 データシート

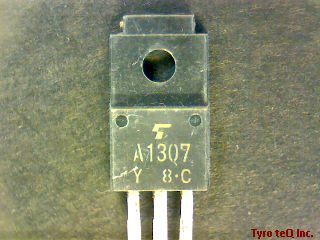

Name: 2SA1307
Brand: TOSHIBA
SKU: 30000690-0000-0000-0000

2SA1307 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SA1307 の詳細情報

型番	2SA1307
メーカー	TOSHIBA
種別	トランジスタ
データシート
Case Connection	ISOLATED
Collector Current-Max (IC)	0.1 A
Collector-base Capacitance-Max	170 pF
Collector-emitter Voltage-Max	50 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	30
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	PNP
Power Dissipation Ambient-Max	2 W
Power Dissipation-Max (Abs)	20 W
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	60 MHz
VCEsat-Max	0.4 V
