2SA1015-O データシート

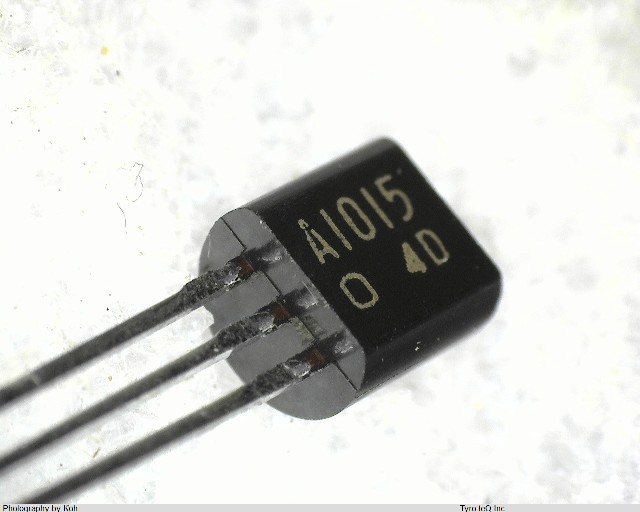

Name: 2SA1015-O
Brand: TOSHIBA
SKU: 30262710-0000-0000-0000

2SA1015-O - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

トランジスタ

2SA1015-O の詳細情報

型番	2SA1015-O
メーカー	TOSHIBA
種別	トランジスタ
データシート
Collector Current-Max (IC)	0.15 A
Collector-base Capacitance-Max	7 pF
Collector-emitter Voltage-Max	50 V
Configuration	SINGLE
DC Current Gain-Min (hFE)	25
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	125 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	240
Polarity/Channel Type	PNP
Power Dissipation Ambient-Max	0.4 W
Power Dissipation-Max (Abs)	0.4 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	80 MHz
VCEsat-Max	0.3 V
