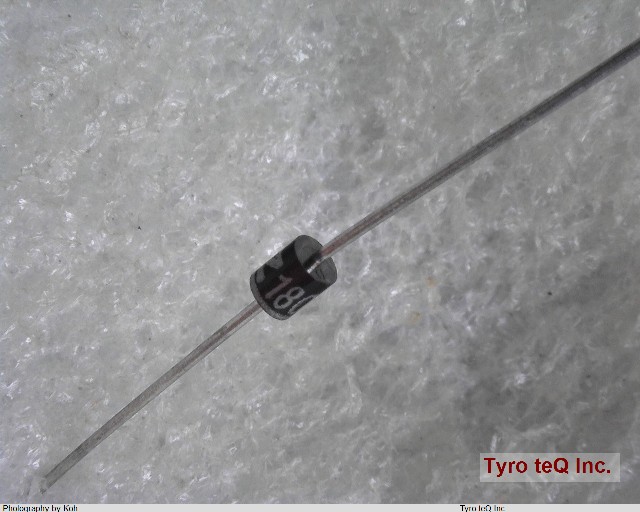

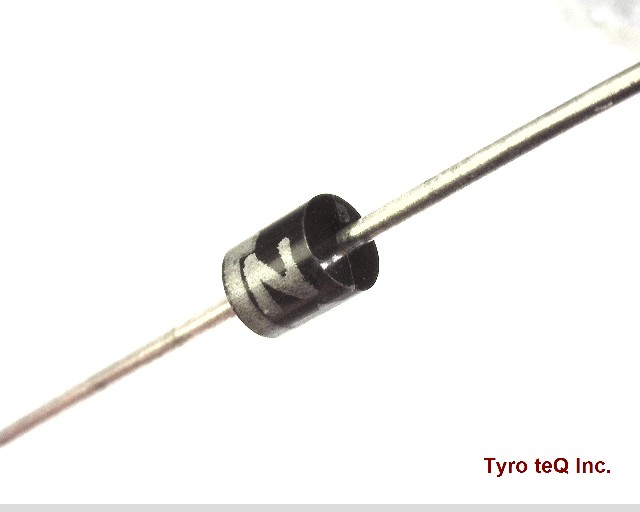

1ZB180 データシート

Name: 1ZB180
Brand: TOSHIBA
SKU: 20284352-0000-0000-0000

1ZB180 - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

1ZB180 の詳細情報

型番	1ZB180
メーカー	TOSHIBA
データシート
Breakdown Voltage-Max	198 V
Breakdown Voltage-Min	162 V
Breakdown Voltage-Nom	180 V
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Dynamic Impedance-Max	500 ohm
JEDEC-95 Code	DO-41
JESD-30 Code	O-PALF-W2
Non-rep Peak Rev Power Dis-Max	200 W
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	1 W
Qualification Status	Not Qualified
Reference Voltage-Nom	180 V
Rep Pk Reverse Voltage-Max	144 V
Reverse Current-Max	10 uA
Reverse Test Voltage	144 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	AVALANCHE
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Temp Coeff-Max	255 mV/Cel
Voltage Tol-Max	5 %
Working Test Current	0.0015 mA
