1SS300(TE85L) データシート

Name: 1SS300(TE85L)
Brand: TOSHIBA
SKU: 20000404-0000-0000-0000

1SS300(TE85L) - TOSHIBA の商品詳細ページです。

２営業日以内に回答いたします

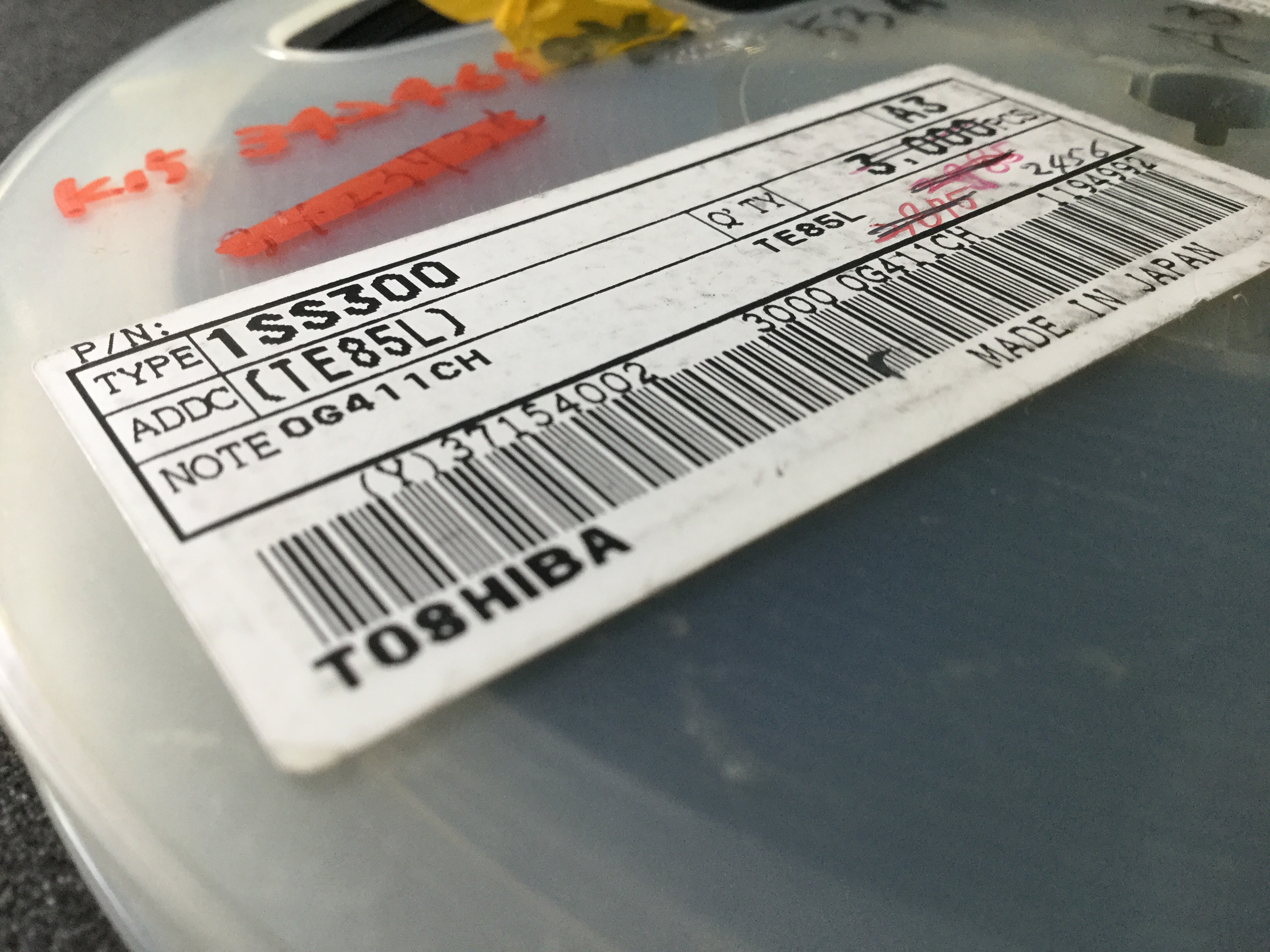

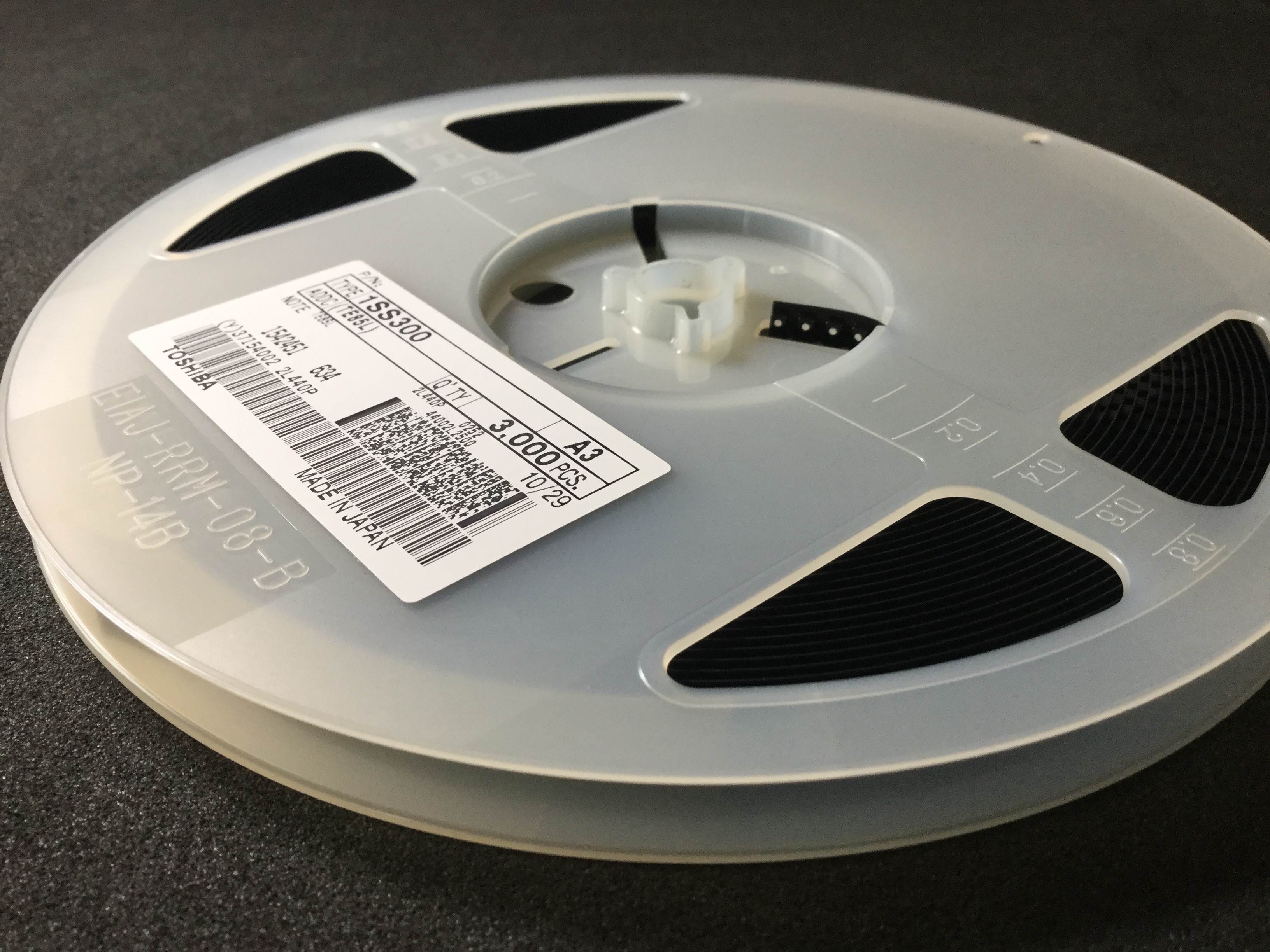

TE85L:4mmピッチテーピング左巻|ダイオード

1SS300(TE85L) の詳細情報

型番	1SS300(TE85L)
メーカー	TOSHIBA
種別	ダイオード
データシート
Configuration	COMMON ANODE, 2 ELEMENTS
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	1.2 V
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e0
Non-rep Pk Forward Current-Max	2 A
Number of Elements	2
Number of Terminals	3
Operating Temperature-Max	125 Cel
Output Current-Max	0.1 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Dissipation-Max	0.1 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	85 V
Reverse Current-Max	0.5 uA
Reverse Recovery Time-Max	0.004 us
Sub Category	Rectifier Diodes
Surface Mount	YES
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
