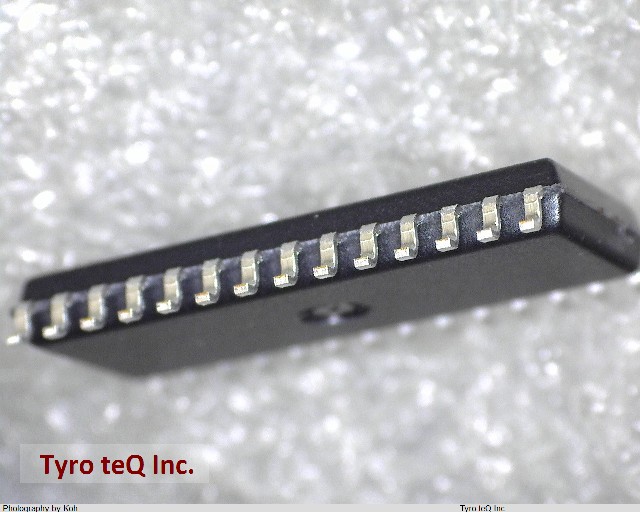

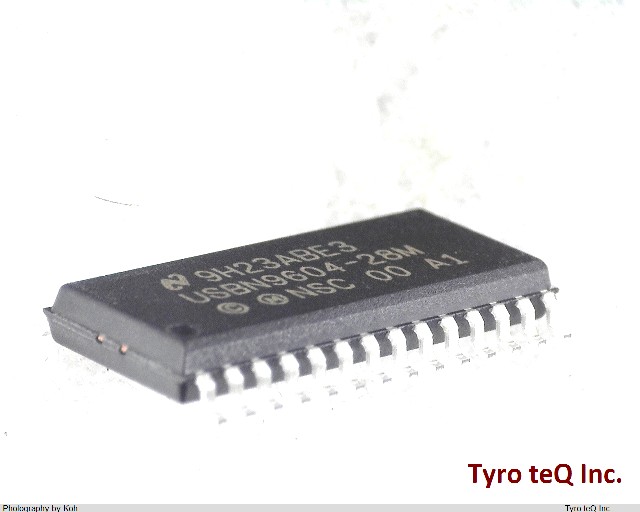

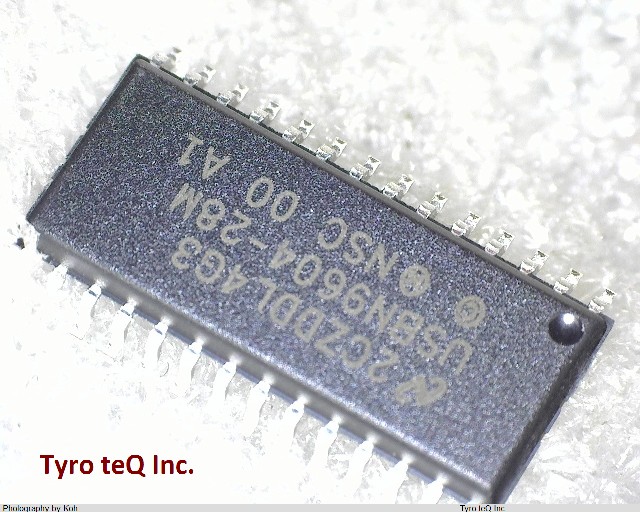

USBN9604-28M/NOPB

Name: USBN9604-28M/NOPB
Brand: TI
SKU: 310088312-0000-0000-0000

USBN9604-28M/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

USBN9604-28M/NOPB の詳細情報

型番	USBN9604-28M/NOPB
メーカー	TI
Address Bus Width	8
Bus Compatibility	USB
Clock Frequency-Max	24 MHz
External Data Bus Width	8
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e3
Length	17.9 mm
Moisture Sensitivity Level	2A
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Bus Controllers
Supply Current-Max	40 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	7.5 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
