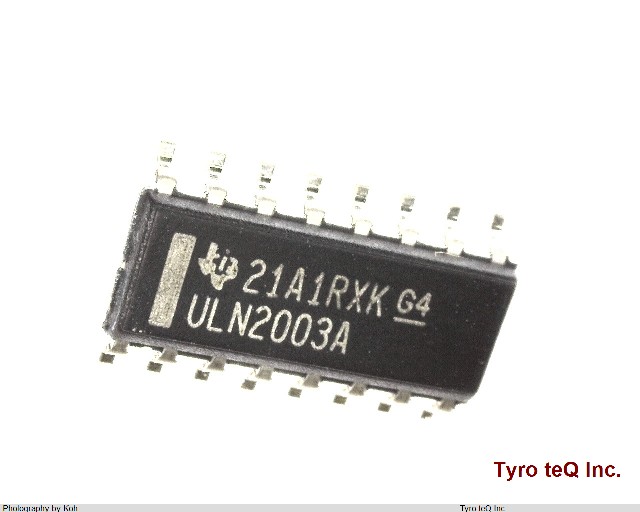

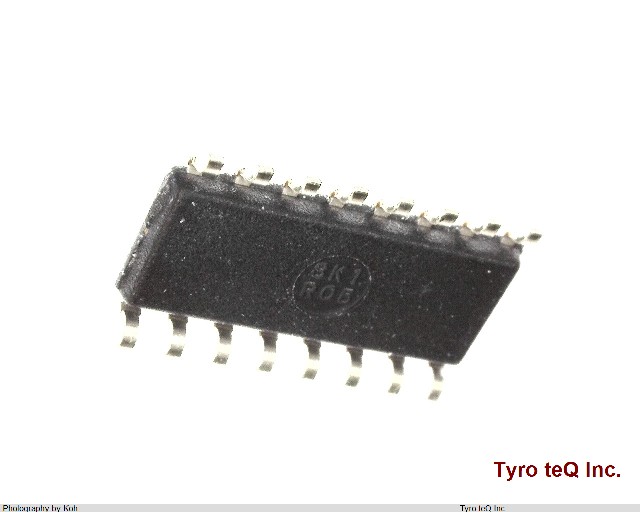

ULN2003AD データシート

Name: ULN2003AD
Brand: TI
SKU: 310003368-0000-0000-0000

ULN2003AD - TI の商品詳細ページです。

２営業日以内に回答いたします

ULN2003AD の詳細情報

型番	ULN2003AD
メーカー	TI
データシート
Additional Feature	LOGIC LEVEL COMPATIBLE
Collector Current-Max (IC)	0.5 A
Collector-emitter Voltage-Max	50 V
Configuration	7 BANKS, DARLINGTON WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE)	1000
JEDEC-95 Code	MS-012AC
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	7
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	NPN
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Transistor Application	SWITCHING
Transistor Element Material	SILICON
VCEsat-Max	1.6 V
