UCC3626PW の詳細情報

  • 仕様・詳細
  • メーカー情報

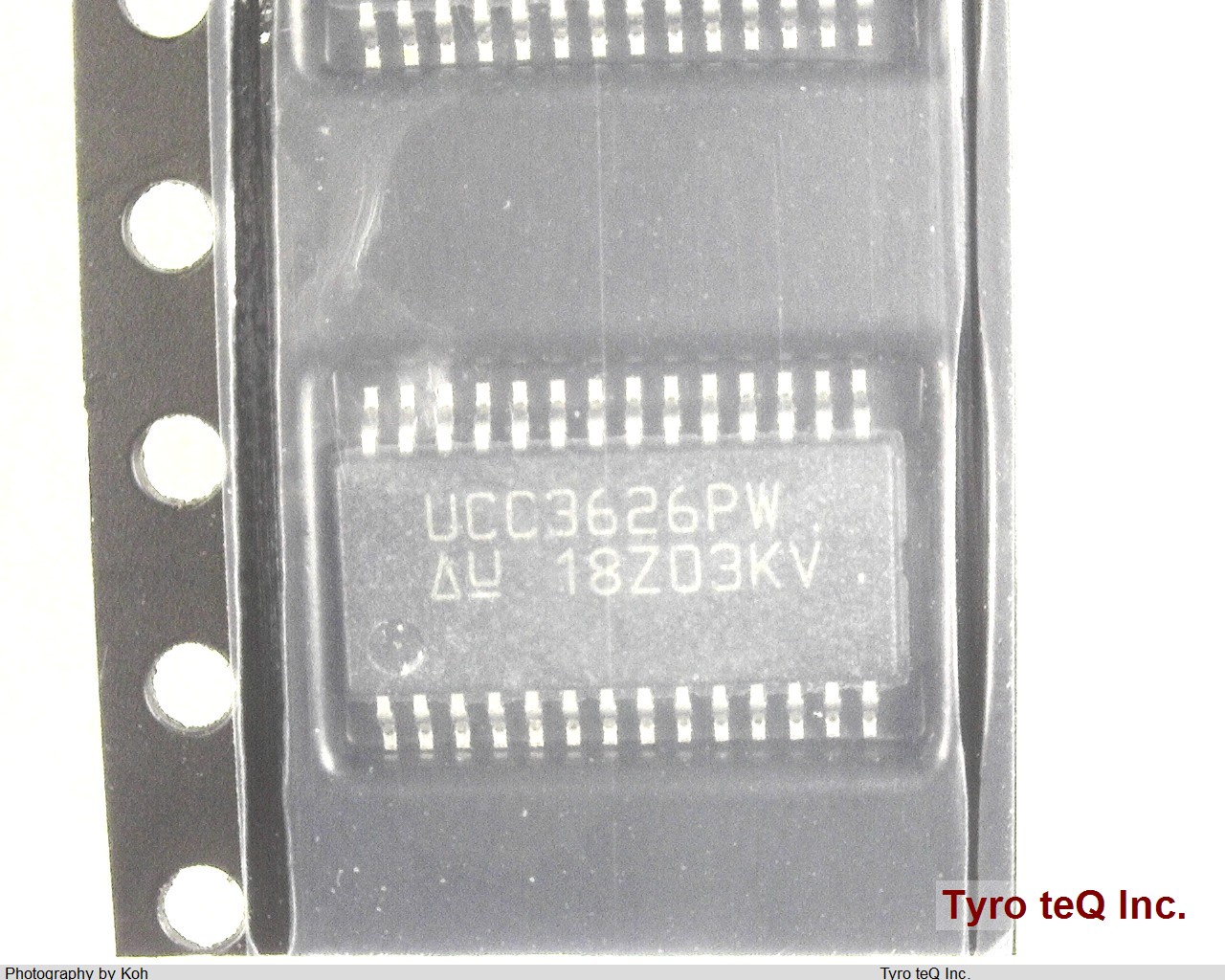

型番UCC3626PW
メーカーTI
データシートProduct_list_pdf
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Length 9.7 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 28
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Output Current-Max 0.2 A
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP28,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 12 V
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sub Category Motion Control Electronics
Supply Current-Max (Isup) 5 mA
Supply Voltage-Max (Vsup) 14.5 V
Supply Voltage-Min (Vsup) 11 V
Supply Voltage-Nom (Vsup) 12 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 4.4 mm
