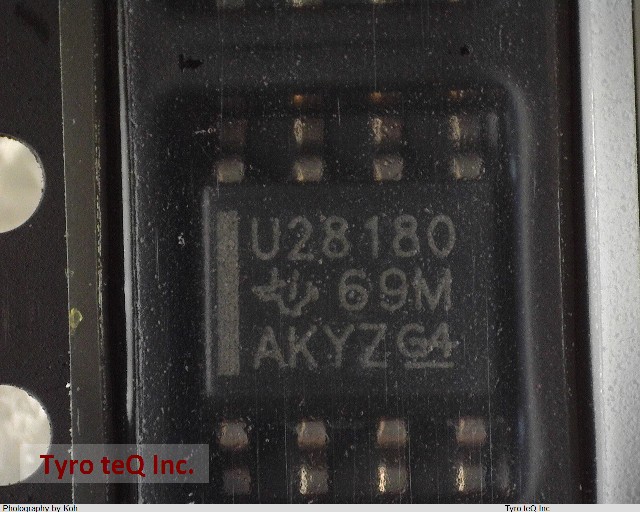

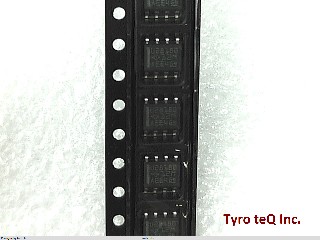

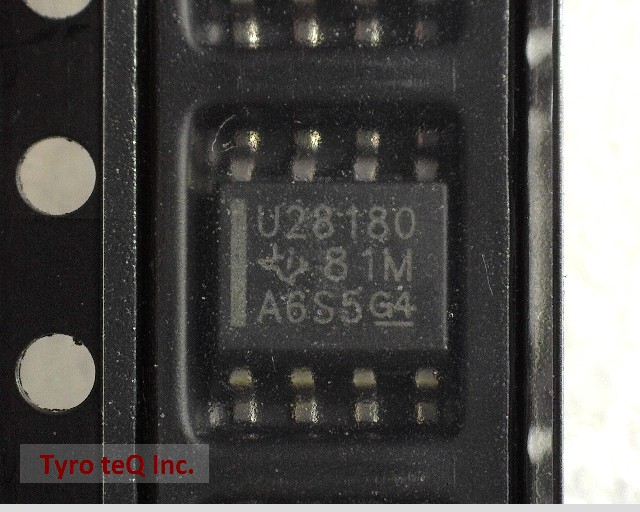

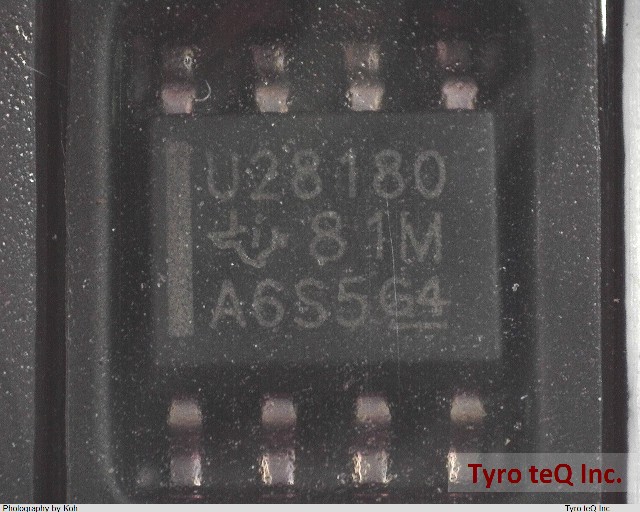

UCC28180DR

Name: UCC28180DR
Brand: TI
SKU: 310106124-0000-0000-0000

UCC28180DR - TI の商品詳細ページです。

２営業日以内に回答いたします

UCC28180DR の詳細情報

型番	UCC28180DR
メーカー	TI
Analog IC - Other Type	POWER FACTOR CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	21 V
Input Voltage-Min	10.1 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.75 mm
Supply Current-Max (Isup)	7 mA
Supply Voltage-Max (Vsup)	21 V
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	275 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
