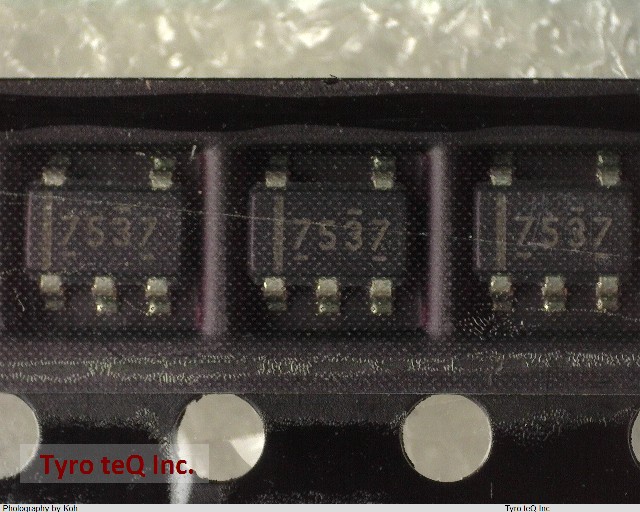

UCC27537DBVT

Name: UCC27537DBVT
Brand: TI
SKU: 310087705-0000-0000-0000

UCC27537DBVT - TI の商品詳細ページです。

２営業日以内に回答いたします

UCC27537DBVT の詳細情報

型番	UCC27537DBVT
メーカー	TI
High Side Driver	YES
Interface IC Type	HALF BRIDGE BASED IGBT/MOSFET DRIVER
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	140 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Current-Max	5 A
Output Peak Current Limit-Nom	5 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	18 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	32 V
Supply Voltage-Min	10 V
Supply Voltage-Nom	18 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	0.026 us
Turn-on Time	0.026 us
Width	1.6 mm
