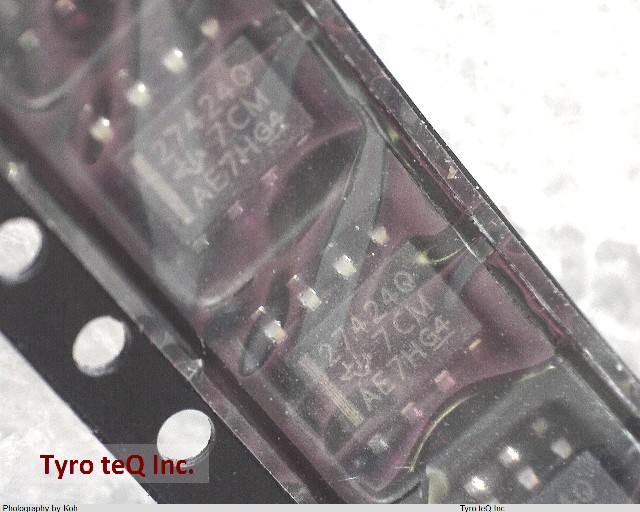

UCC27424QDRQ1 データシート

Name: UCC27424QDRQ1
Brand: TI
SKU: 310061640-0000-0000-0000

UCC27424QDRQ1 - TI の商品詳細ページです。

２営業日以内に回答いたします

UCC27424QDRQ1 の詳細情報

型番	UCC27424QDRQ1
メーカー	TI
データシート
High Side Driver	YES
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Current-Max	4 A
Output Peak Current Limit-Nom	4 A
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	4.5/15 V
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	1.75 mm
Sub Category	MOSFET Drivers
Supply Current-Max	1.8 mA
Supply Voltage-Max	15 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	14 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	0.05 us
Turn-on Time	0.06 us
Width	3.9 mm
