UC5603DP データシート

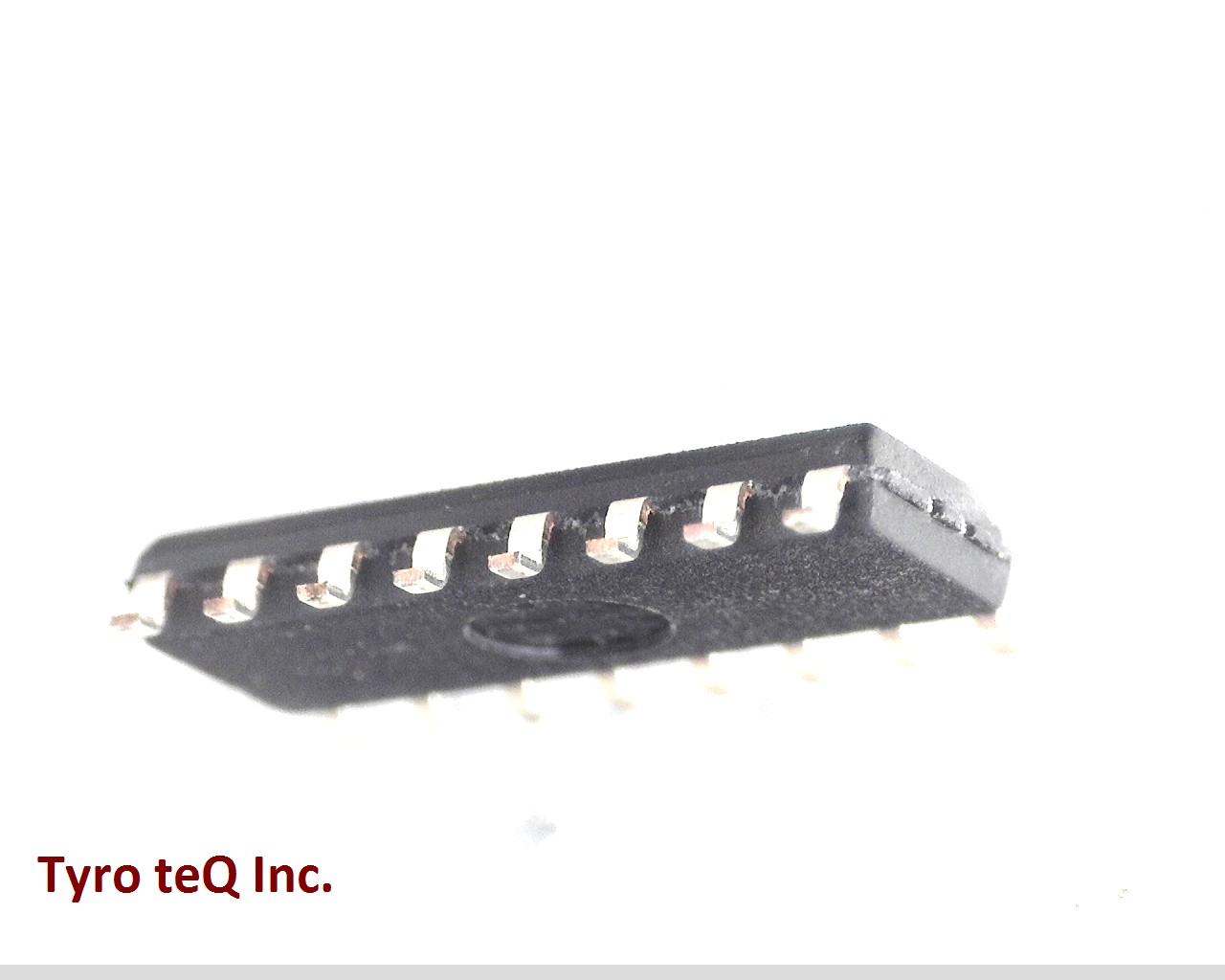

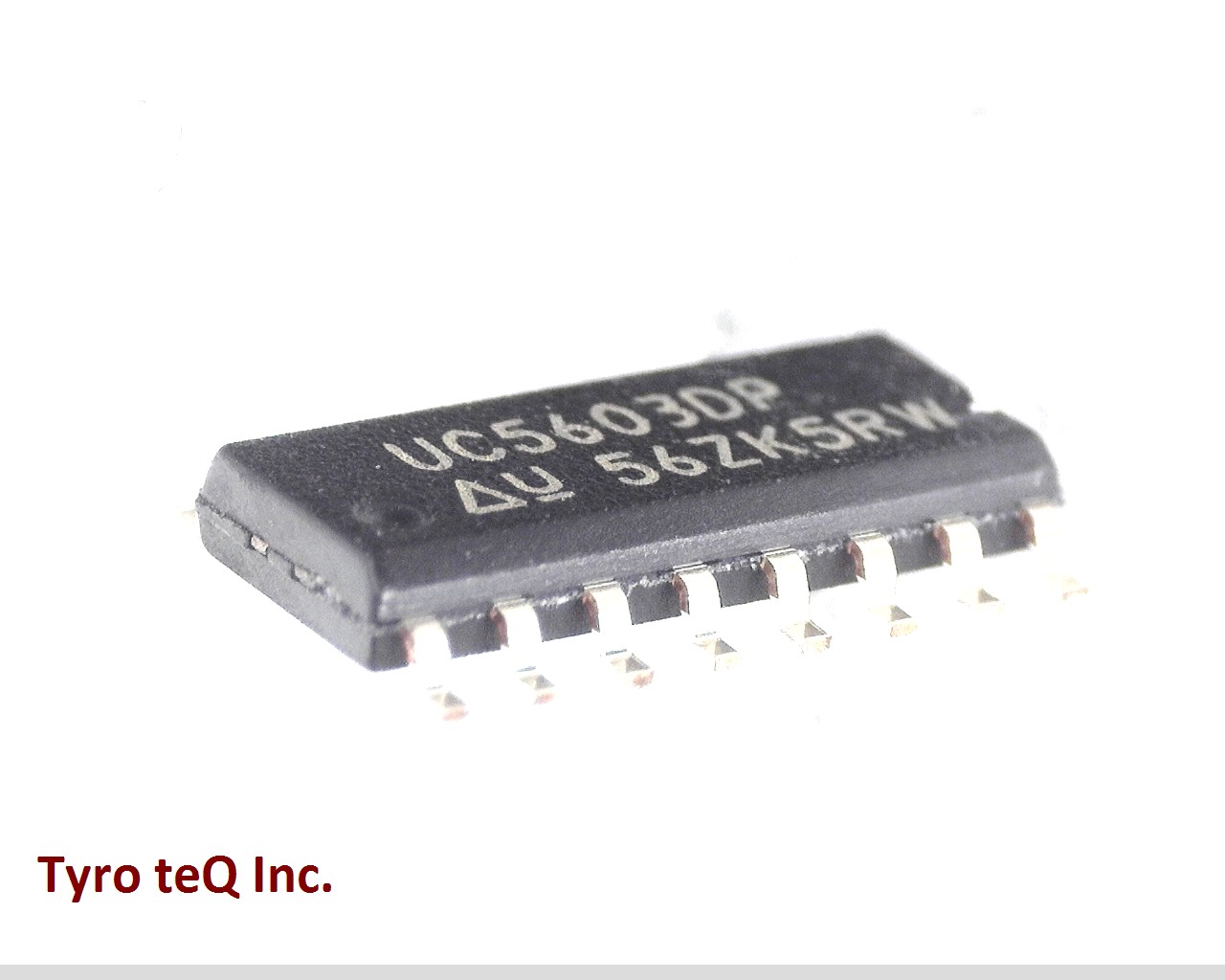

Name: UC5603DP
Brand: TI
SKU: 310006109-0000-0000-0000

UC5603DP - TI の商品詳細ページです。

２営業日以内に回答いたします

UC5603DP の詳細情報

型番	UC5603DP
メーカー	TI
データシート
Differential Output	NO
Interface IC Type	SCSI BUS TERMINATOR
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Signal Lines	9
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Pull-up Resistance-Nom	110 ohm
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Bus Terminators
Supply Current-Max	220 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	3.8 V
Supply Voltage-Nom	4.75 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
