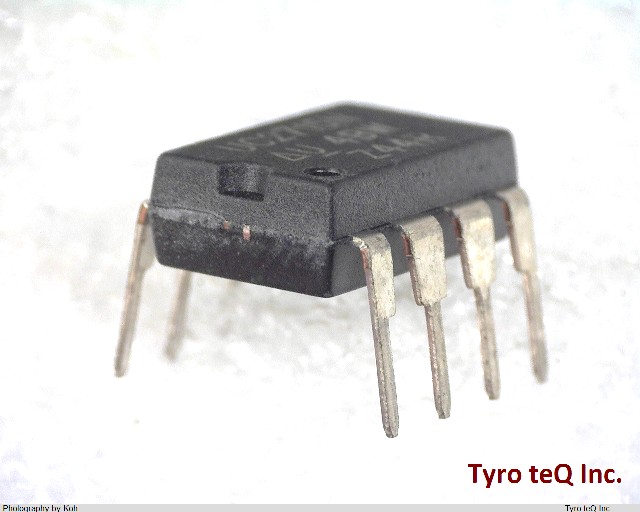

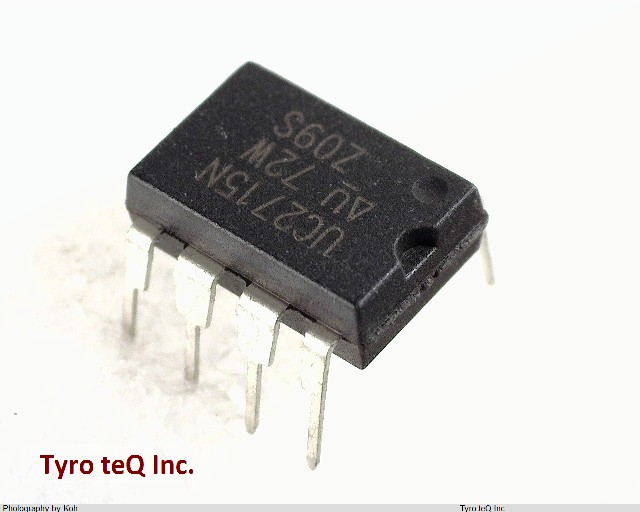

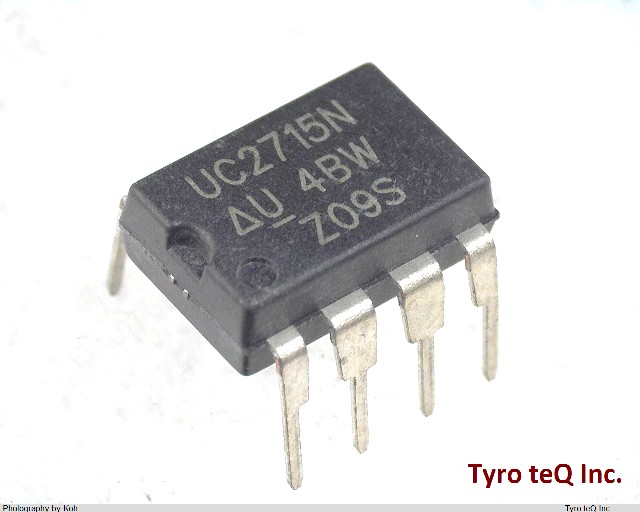

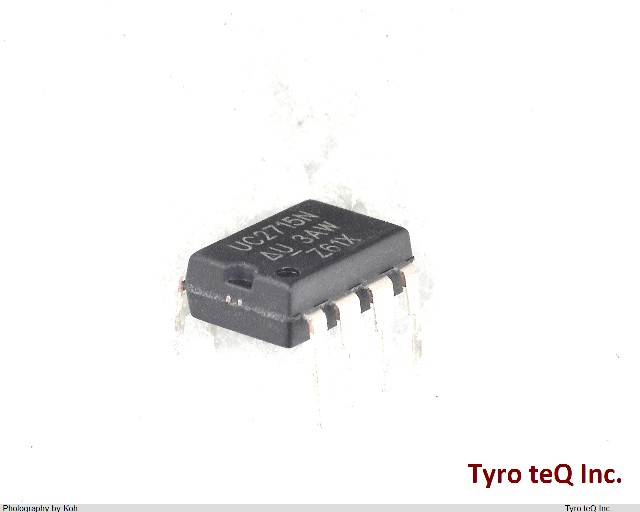

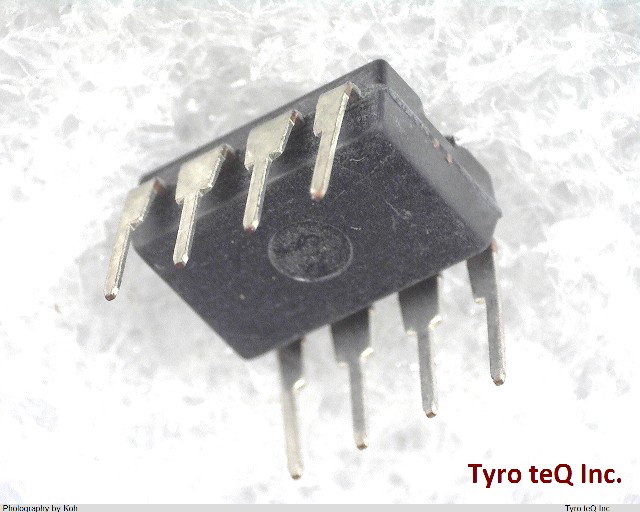

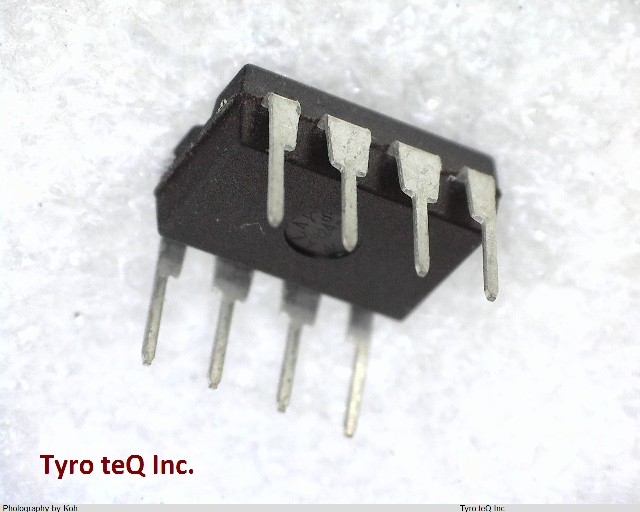

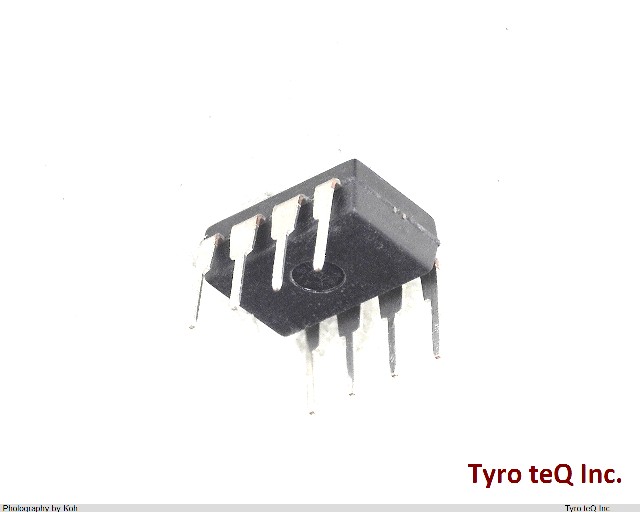

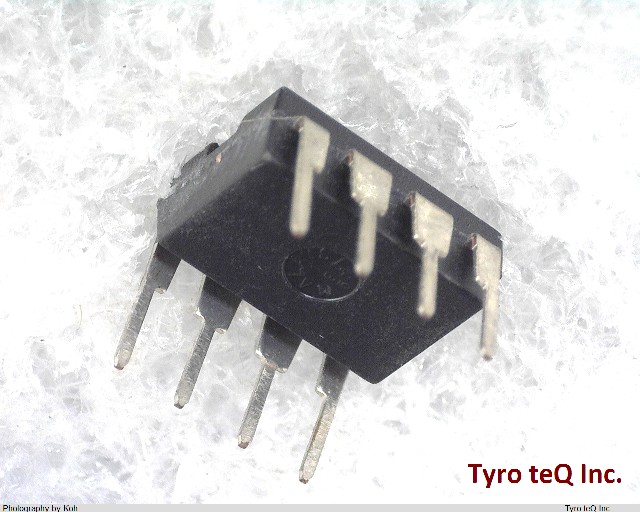

UC2715N データシート

Name: UC2715N
Brand: TI
SKU: 310015987-0000-0000-0000

UC2715N - TI の商品詳細ページです。

２営業日以内に回答いたします

UC2715N の詳細情報

型番	UC2715N
メーカー	TI
データシート
Driver Number of Bits	2
High Side Driver	NO
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.81 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Current-Max	0.2 A
Output Peak Current Limit-Nom	2 A
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	20 V
Supply Voltage-Min	7 V
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	0.085 us
Turn-on Time	0.085 us
Width	7.62 mm
