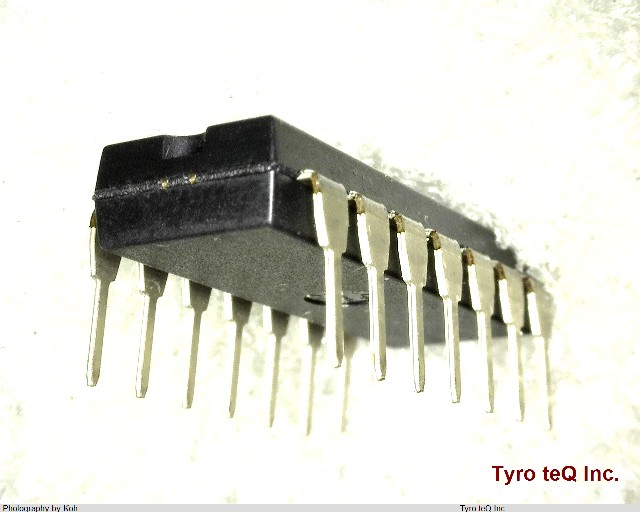

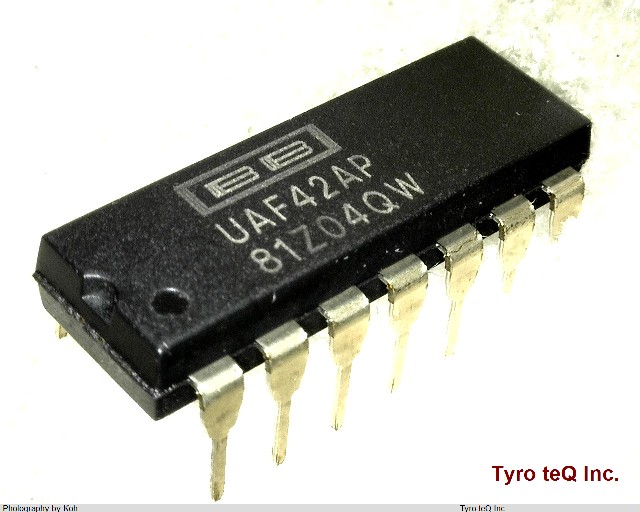

UAF42AP データシート Ti

UAF42AP - TI の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

UAF42AP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番UAF42AP
メーカーTI
データシートProduct_list_pdf
Active Filter Type CONTINUOUS TIME FILTER
Center or Cutoff Freq Rng-Max 100 kHz
Center or Cutoff Freq Rng-Min 0 kHz
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Length 19.305 mm
Neg Supply Voltage-Max (Vsup) -18 V
Neg Supply Voltage-Min (Vsup) -6 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 14
Operating Temperature-Max 85 Cel
Operating Temperature-Min -25 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Poles and Zeros 2 AND 0
Power Supplies +-15 V
Qualification Status Not Qualified
Response UNIVERSAL
Seated Height-Max 5.08 mm
Sub Category Active Filters
Supply Current-Max (Isup) 7 mA
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 6 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Temperature Grade OTHER
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transfer Characteristics BUTTERWORTH/BESSEL/CHEBYSHEV
Width 7.62 mm
