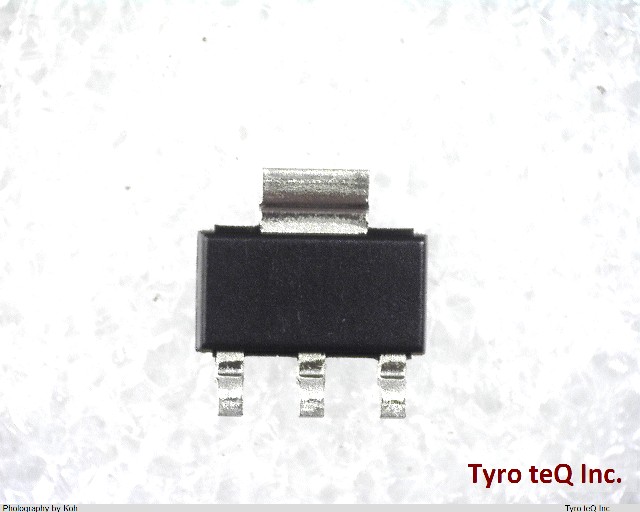

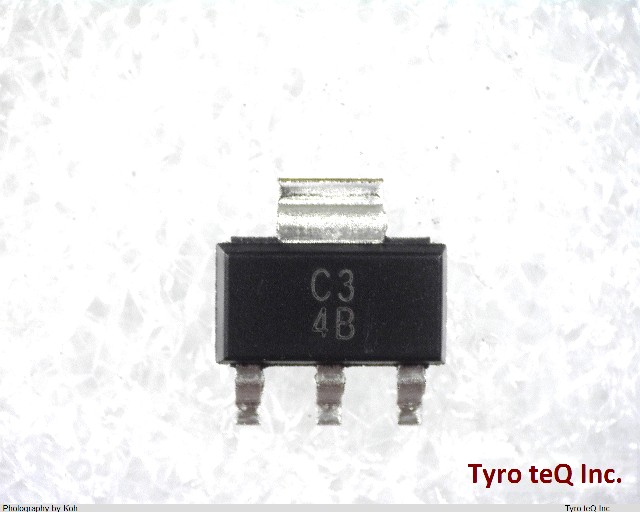

UA78M33CDCY

Name: UA78M33CDCY
Brand: TI
SKU: 310015428-0000-0000-0000

UA78M33CDCY - TI の商品詳細ページです。

２営業日以内に回答いたします

UA78M33CDCY の詳細情報

型番	UA78M33CDCY
メーカー	TI
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	30 V
Input Voltage-Min	5.3 V
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e3
Length	6.5 mm
Line Regulation-Max	0.1 %
Load Regulation-Max	0.1 %
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	3.5 V
Output Voltage1-Min	3.1 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	3 %
Width	3.5 mm
