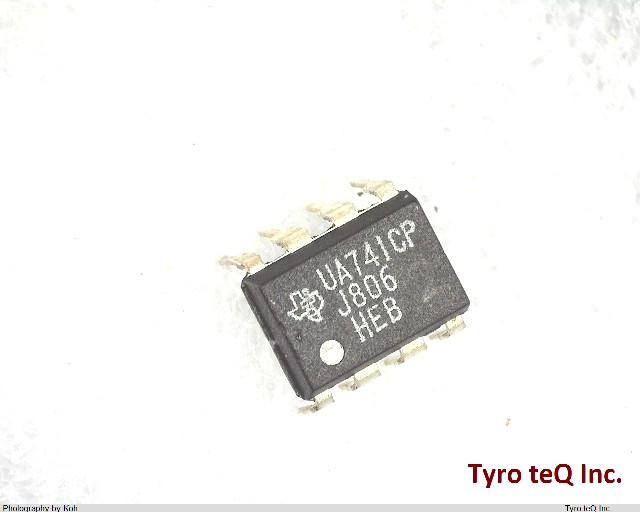

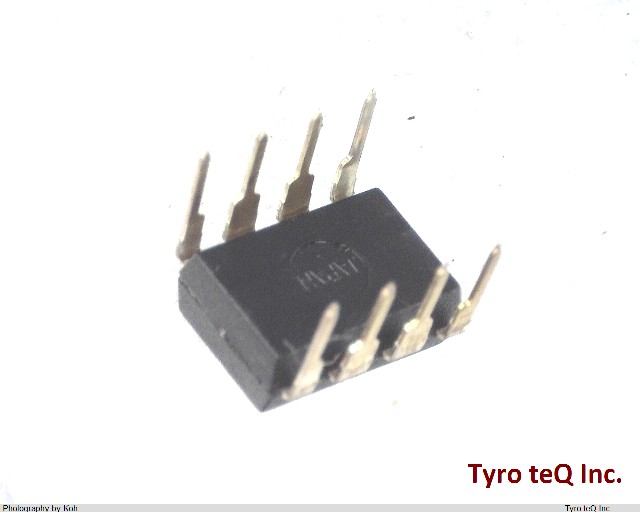

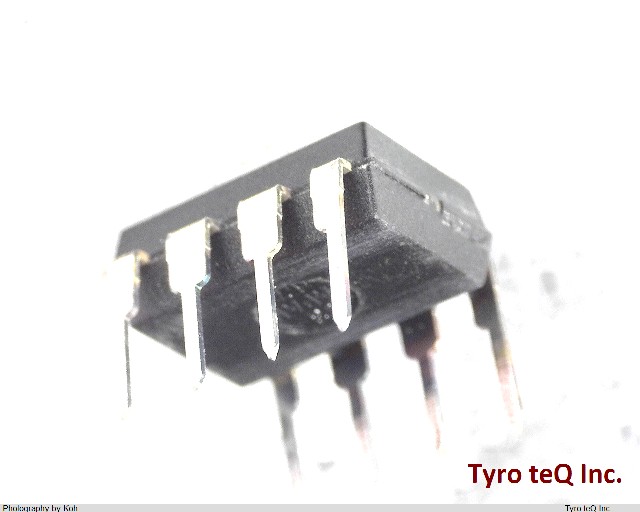

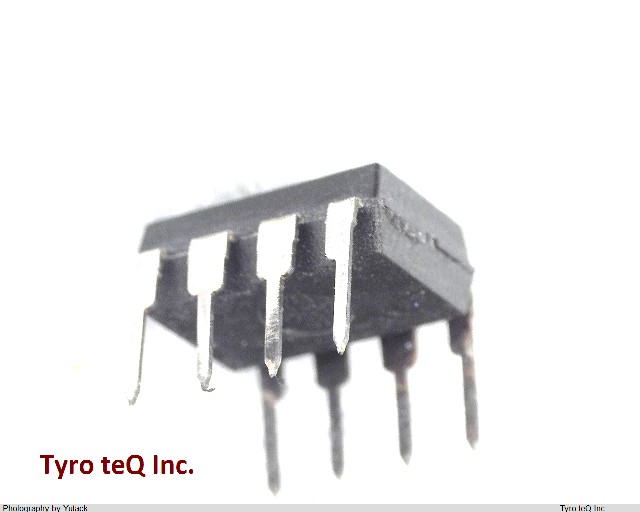

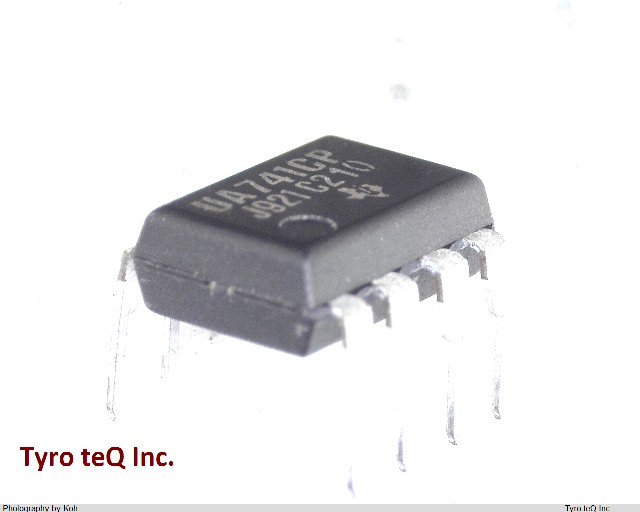

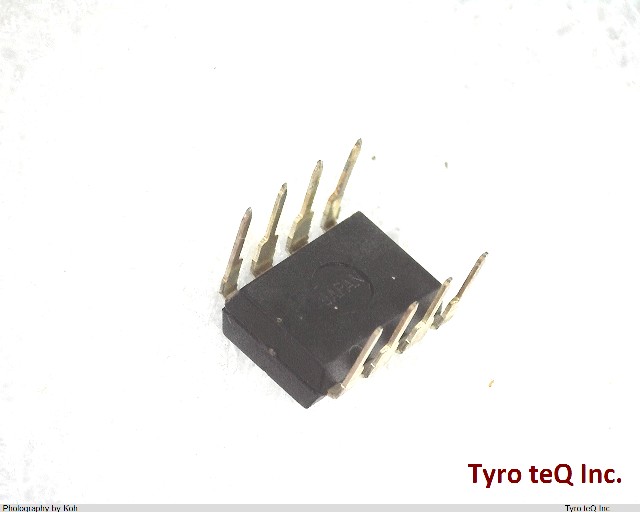

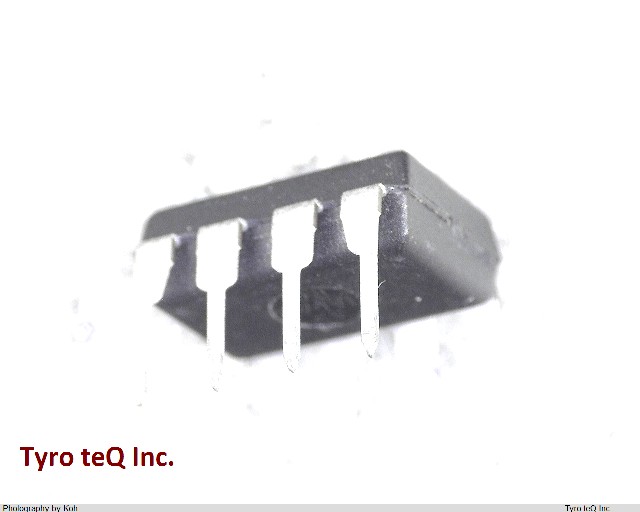

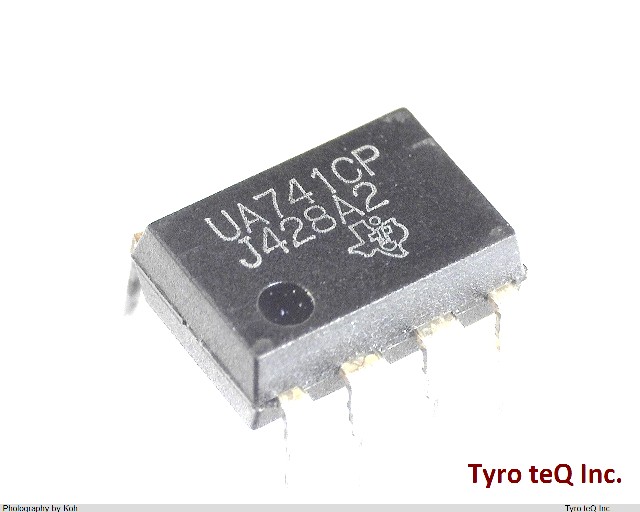

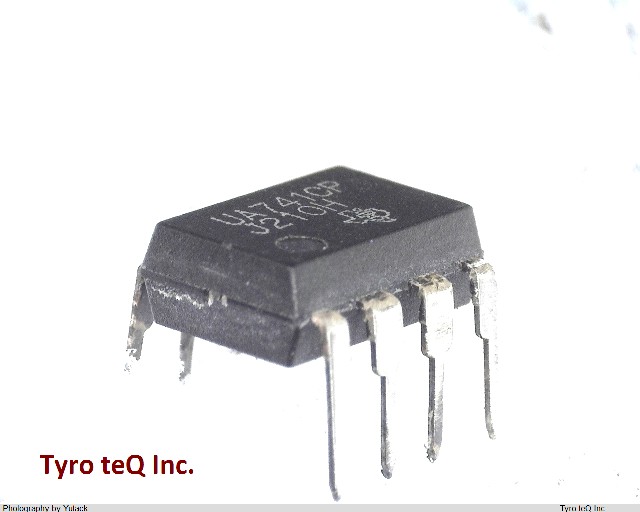

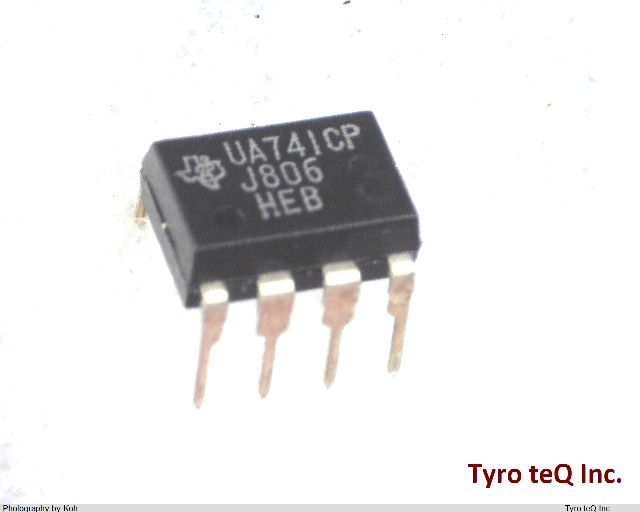

UA741CP - TI の商品詳細ページです。

1

175時間14分後 以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

UA741CP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番UA741CP
メーカーTI
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.8 uA
Bias Current-Max (IIB) @25C 0.5 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 70 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.2 uA
Input Offset Voltage-Max 5000 uV
JESD-30 Code R-GDIP-T8
JESD-609 Code e4
Length 4.4 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies +-15 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Nom 0.5 V/us
Sub Category Operational Amplifier
Supply Current-Max 2.8 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 1000 kHz
Voltage Gain-Min 15000
Width 3 mm
会社名称Texas Instruments Incorporated.
設立1930
資本金USD 816 million
所在地12500 TI Boulevard Dallas, Texas 75243 USA
URLhttp://www.ti.com/
