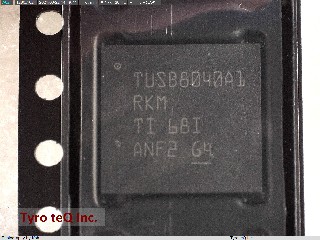

TUSB8040A1RKMR

Name: TUSB8040A1RKMR
Brand: TI
SKU: 400050650-0000-0000-0000

TUSB8040A1RKMR - TI の商品詳細ページです。

２営業日以内に回答いたします

TUSB8040A1RKMR の詳細情報

型番	TUSB8040A1RKMR
メーカー	TI
Additional Feature	1.05-V SUPPLY MAY BE USED AS LONG AS MINIMUM SUPPLY CONDITIONS ARE MET
Bus Compatibility	I2C; SMBUS
Clock Frequency-Max	24 MHz
JESD-30 Code	S-PQCC-N100
JESD-609 Code	e4
Length	9 mm
Moisture Sensitivity Level	3
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	SLGA100,15X15,24
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.1,3.3 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Bus Controllers
Supply Voltage-Max	1.26 V
Supply Voltage-Min	0.99 V
Supply Voltage-Nom	1.1 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Pitch	0.6 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	9 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
