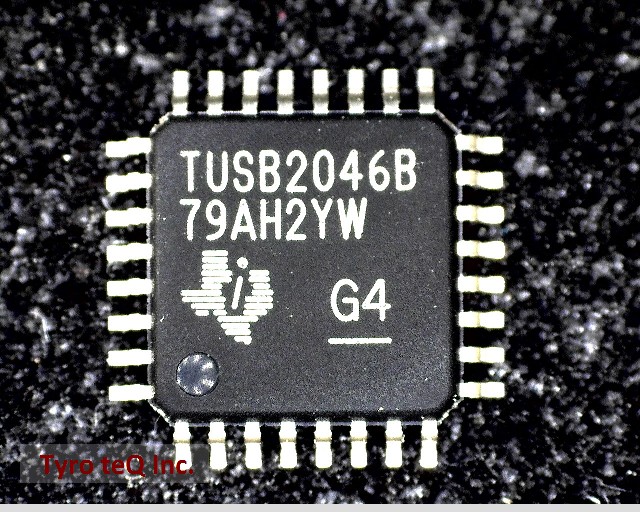

TUSB2046BVF データシート

Name: TUSB2046BVF
Brand: TI
SKU: 300000907-0000-0000-0000

TUSB2046BVF - TI の商品詳細ページです。

２営業日以内に回答いたします

TUSB2046BVF の詳細情報

型番	TUSB2046BVF
メーカー	TI
データシート
Address Bus Width	0
Bus Compatibility	USB
Clock Frequency-Max	6 MHz
Data Transfer Rate-Max	12 MBps
External Data Bus Width	0
JESD-30 Code	S-PQFP-G32
JESD-609 Code	e4
Length	7 mm
Moisture Sensitivity Level	3
Number of Terminals	32
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Equivalence Code	QFP32,.35SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Bus Controllers
Supply Current-Max	40 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
