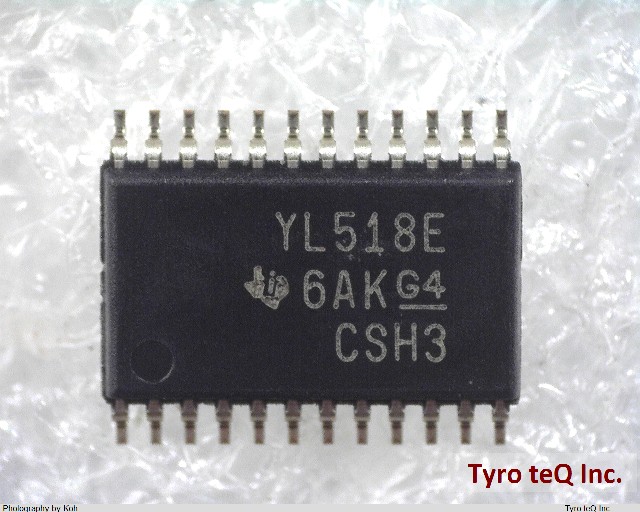

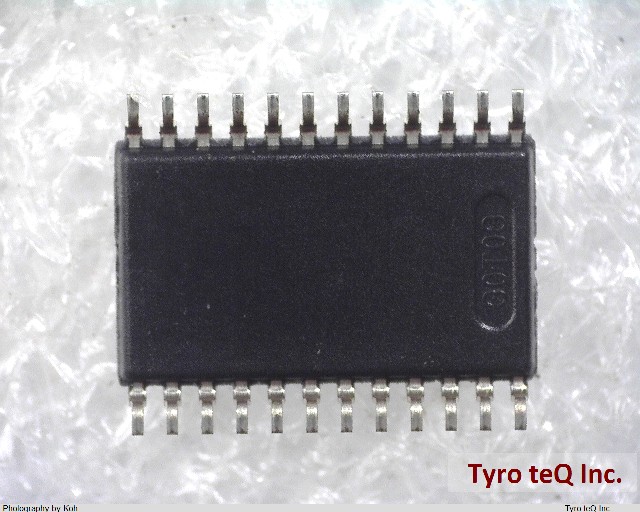

TS3A27518EPWR

Name: TS3A27518EPWR
Brand: TI
SKU: 300298532-0000-0000-0000

TS3A27518EPWR - TI の商品詳細ページです。

２営業日以内に回答いたします

TS3A27518EPWR の詳細情報

型番	TS3A27518EPWR
メーカー	TI
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
Bandwidth-Nom	240 kHz
Input Voltage-Max	3.6 V
Input Voltage-Min	0 V
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e4
Length	7.8 mm
Moisture Sensitivity Level	1
Normal Position	NO V
Number of Channels	6
Number of Functions	1
Number of Terminals	24
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	0.3 ohm
On-state Resistance-Max (Ron)	16.3 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP24,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8/3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Signal Current-Max	0.05 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.005 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Switch-off Time-Max	31.2 ns
Switch-on Time-Max	56.7 ns
Switching	BREAK-BEFORE-MAKE V
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
