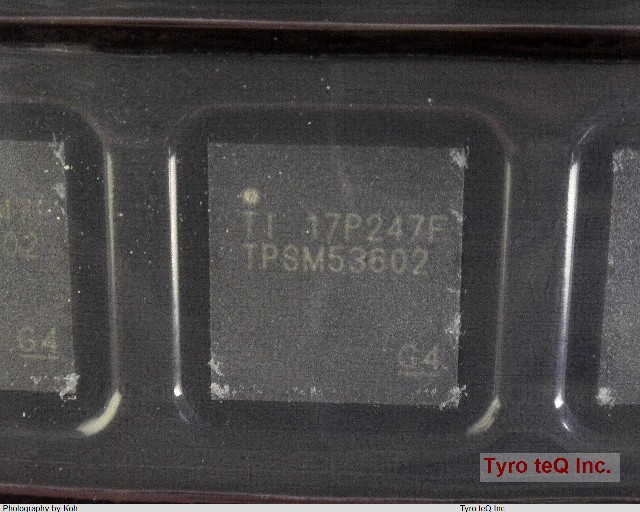

TPSM53602RDAR

Name: TPSM53602RDAR
Brand: TI
SKU: 300396078-0000-0000-0000

TPSM53602RDAR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPSM53602RDAR の詳細情報

型番	TPSM53602RDAR
メーカー	TI
Additional Feature	O/P VOLTAGE IS FROM 1V TO 7V; ALSO HAS PFM CONTROL TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	36 V
Input Voltage-Min	3.8 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PXMA-N15
JESD-609 Code	e4
Length	5.5 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	15
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	7 V
Output Voltage-Min	1 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Seated Height-Max	4.1 mm
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	1400 kHz
Technology	HYBRID
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Position	UNSPECIFIED
Width	5 mm
