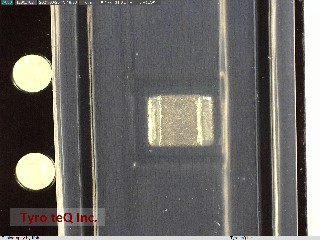

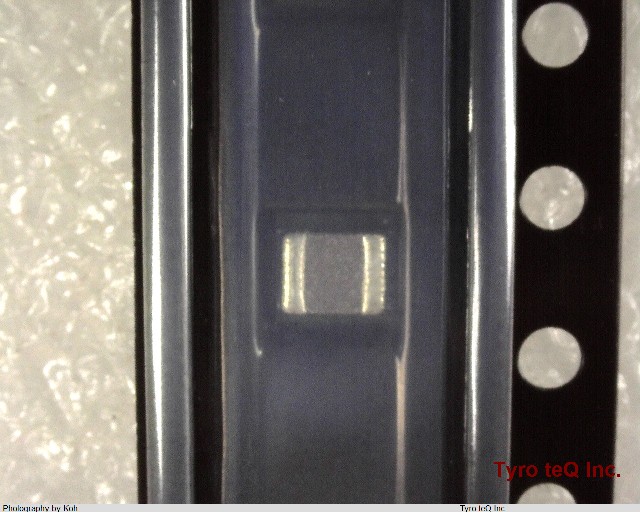

TPS82130SILT

Name: TPS82130SILT
Brand: TI
SKU: 300394317-0000-0000-0000

TPS82130SILT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS82130SILT の詳細情報

型番	TPS82130SILT
メーカー	TI
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 5V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	17 V
Input Voltage-Min	3 V
Input Voltage-Nom	12 V
JESD-30 Code	R-XDMA-B8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	6 V
Output Voltage-Min	0.9 V
Package Body Material	UNSPECIFIED
Package Code	DMA
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.53 mm
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	2200 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Gold (Ni/Au)
Terminal Form	BUTT
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.8 mm
