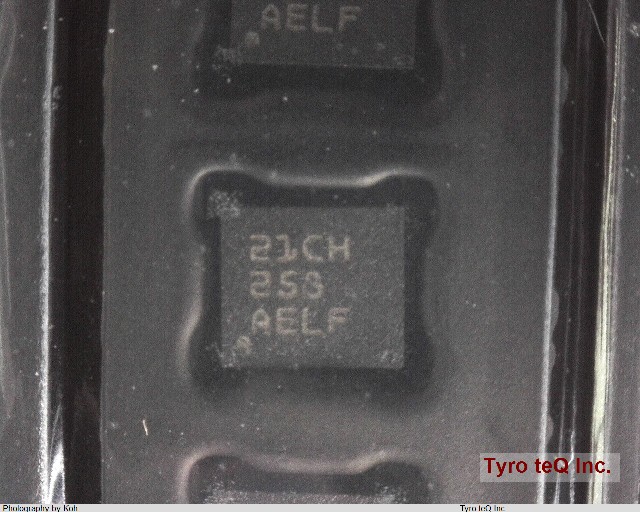

TPS7A5201RPSR

Name: TPS7A5201RPSR
Brand: TI
SKU: 300396086-0000-0000-0000

TPS7A5201RPSR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS7A5201RPSR の詳細情報

型番	TPS7A5201RPSR
メーカー	TI
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.225 V
Dropout Voltage1-Nom	0.04 V
Input Voltage-Max	6.5 V
Input Voltage-Min	1.1 V
JESD-30 Code	R-PQCC-N12
JESD-609 Code	e4
Length	2.5 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	12
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	2 A
Output Voltage1-Max	5.15 V
Output Voltage1-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	QCCN
Package Equivalence Code	LCC12,.09X.08
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, VERY THIN PROFILE Meter
Packing Method	TR
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1 mm
Surface Mount	YES
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Position	QUAD
Voltage Tolerance-Max	0.5 %
Width	2.2 mm
