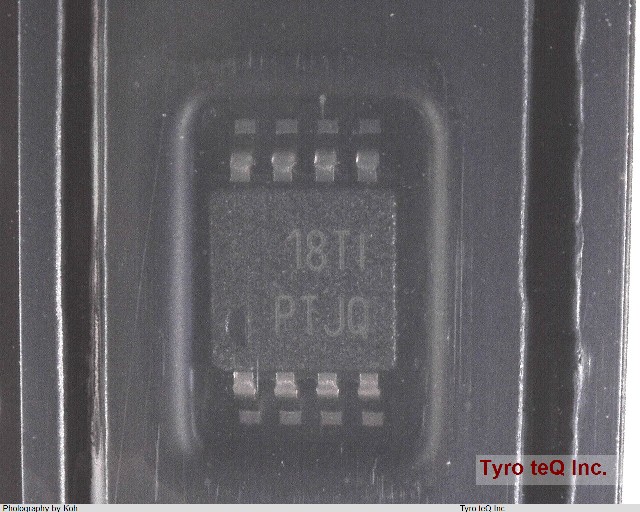

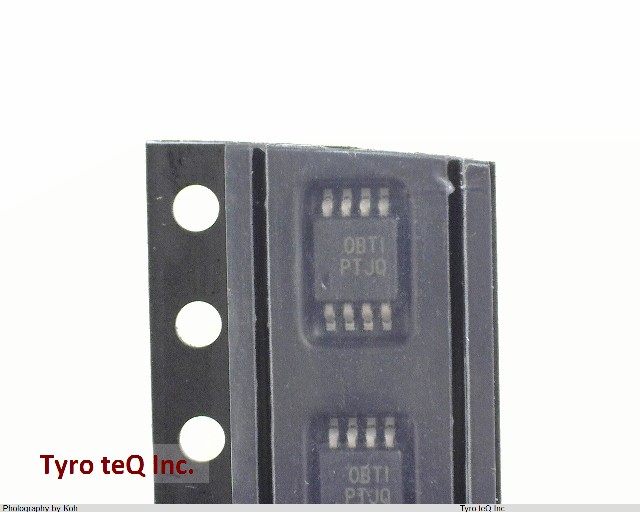

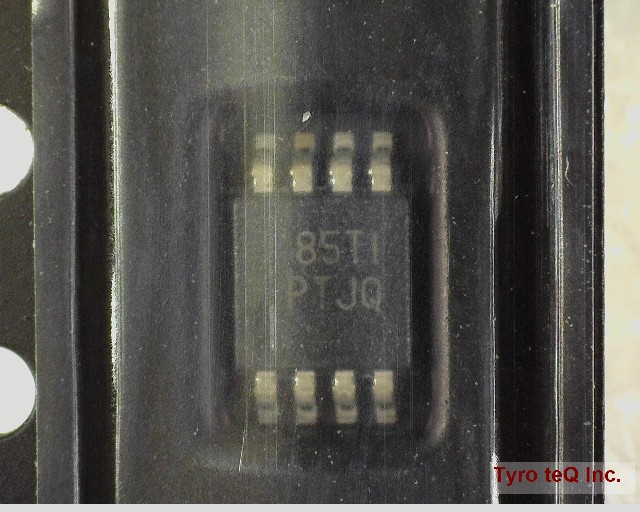

TPS7A4901DGNR

Name: TPS7A4901DGNR
Brand: TI
SKU: 300322570-0000-0000-0000

TPS7A4901DGNR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS7A4901DGNR の詳細情報

型番	TPS7A4901DGNR
メーカー	TI
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.6 V
Dropout Voltage1-Nom	0.26 V
Input Voltage-Max	36 V
Input Voltage-Min	3 V
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.15 A
Output Voltage1-Max	33 V
Output Voltage1-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.1 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	2.5 %
Width	3 mm
