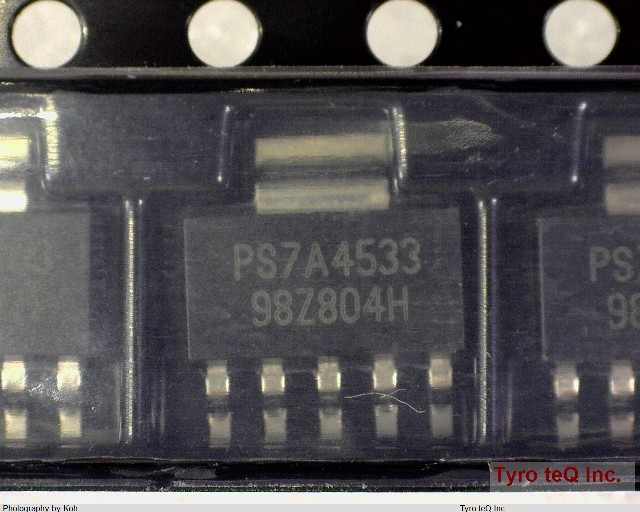

TPS7A4533DCQR データシート

Name: TPS7A4533DCQR
Brand: TI
SKU: 300322976-0000-0000-0000

TPS7A4533DCQR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS7A4533DCQR の詳細情報

型番	TPS7A4533DCQR
メーカー	TI
データシート
Adjustability	FIXED
Dropout Voltage1-Max	0.45 V
Dropout Voltage1-Nom	0.3 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	20 V
Input Voltage-Min	3.8 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e4
Length	6.5 mm
Line Regulation-Max	0.01 %
Load Regulation-Max	0.07 %
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	3.4 V
Output Voltage1-Min	3.2 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223-5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	3 %
Width	3.5 mm
