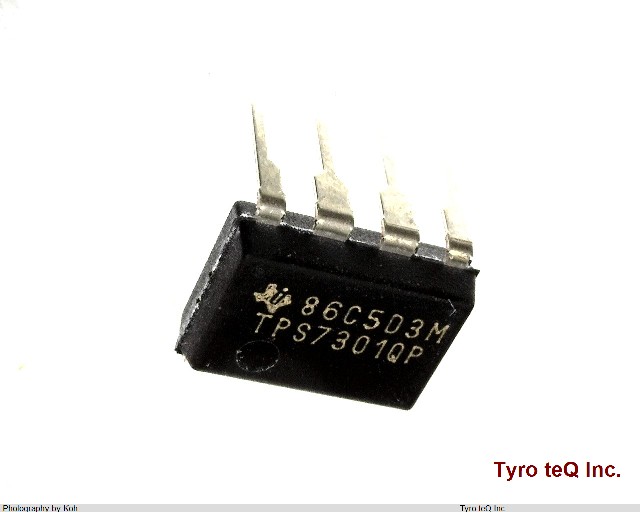

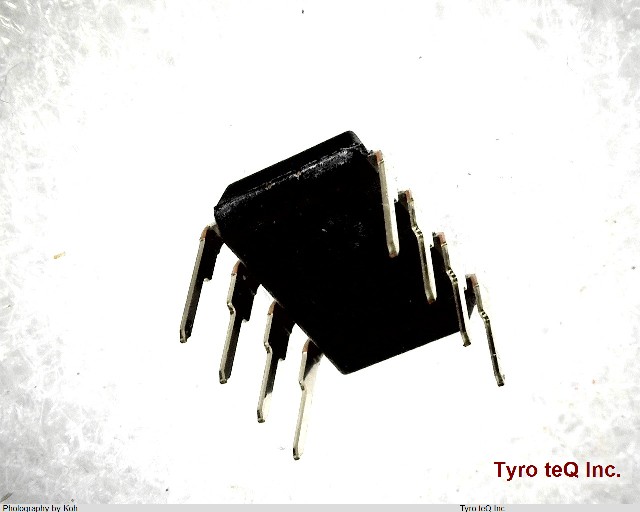

TPS7301QPW データシート

Name: TPS7301QPW
Brand: TI
SKU: 300031618-0000-0000-0000

TPS7301QPW - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS7301QPW の詳細情報

型番	TPS7301QPW
メーカー	TI
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.085 V
Dropout Voltage1-Nom	0.27 V
Input Voltage-Max	10 V
Input Voltage-Min	2.47 V
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Line Regulation-Max (%/V)	0.29
Load Regulation-Max(%)	4.71 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	20
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	9.75 V
Output Voltage1-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.2 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	PMOS
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	2 %
Width	4.4 mm
