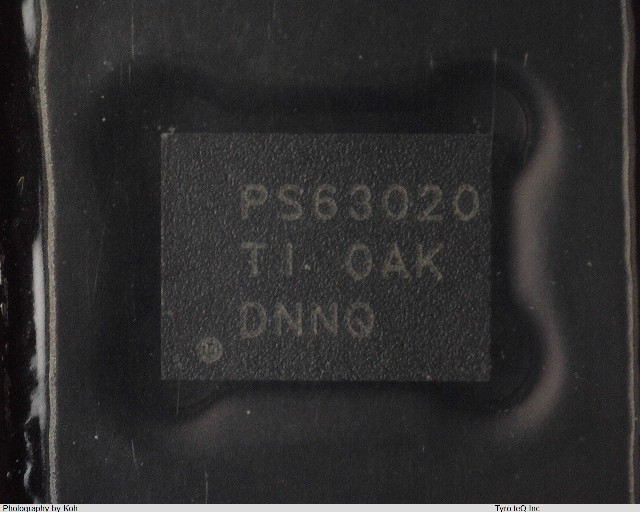

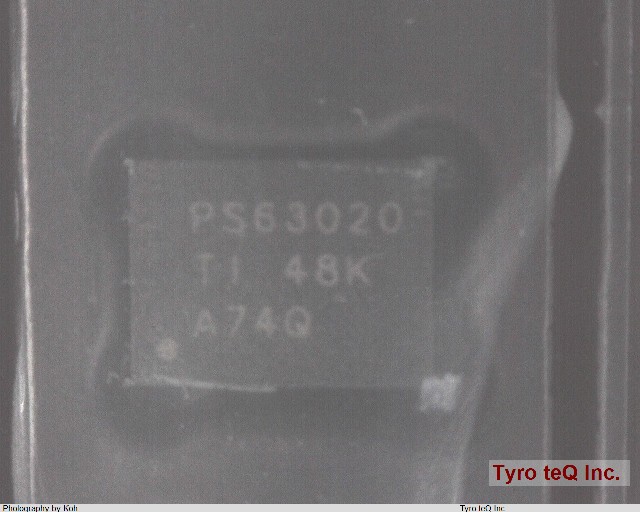

TPS63020DSJT

Name: TPS63020DSJT
Brand: TI
SKU: 300293346-0000-0000-0000

TPS63020DSJT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS63020DSJT の詳細情報

型番	TPS63020DSJT
メーカー	TI
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 V TO 5.5 V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	1.8 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PDSO-N14
JESD-609 Code	e4
Length	4 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	5.5 V
Output Voltage-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC14,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	2600 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
