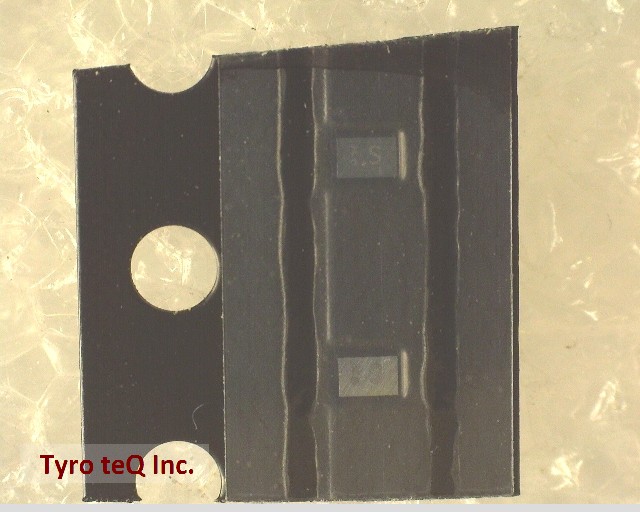

TPS62802YKAR

Name: TPS62802YKAR
Brand: TI
SKU: 300395974-0000-0000-0000

TPS62802YKAR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS62802YKAR の詳細情報

型番	TPS62802YKAR
メーカー	TI
Additional Feature	ALSO OPERATES IN PFM MODE; ADJUSTABLE OUTPUT VOLTAGE IS 1.8V TO 3.3V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	1.8 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PBGA-B6
JESD-609 Code	e1
Length	1.054 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Output Voltage-Max	3.3 V
Output Voltage-Min	1.8 V
Output Voltage-Nom	1.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	VFBGA
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Seated Height-Max	0.4 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	4000 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Pitch	0.35 mm
Terminal Position	BOTTOM
Width	0.704 mm
