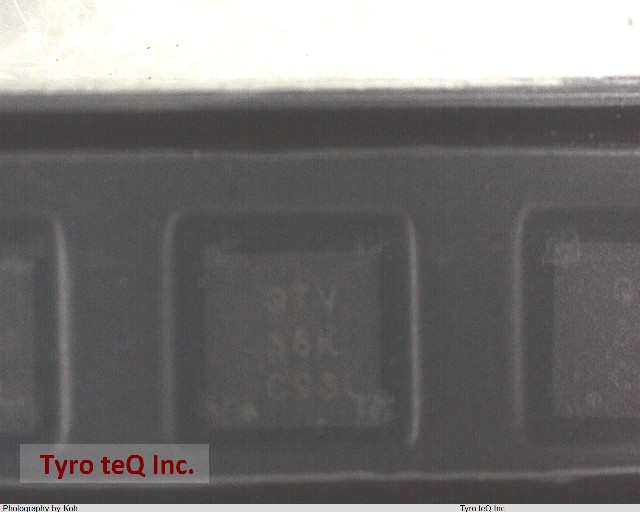

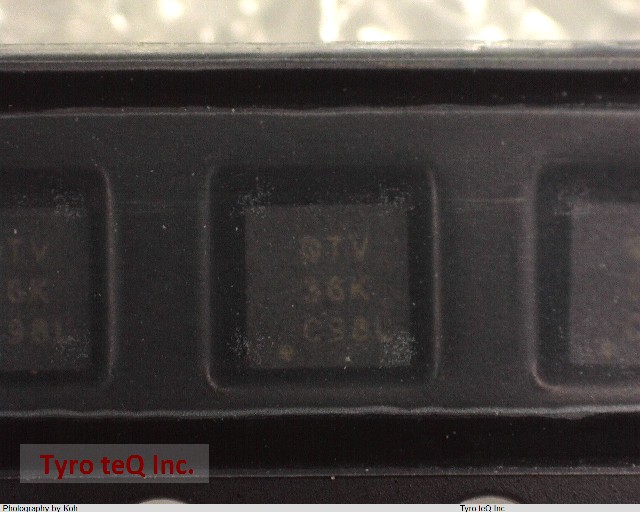

TPS62160DSGT

Name: TPS62160DSGT
Brand: TI
SKU: 400004156-0000-0000-0000

TPS62160DSGT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS62160DSGT の詳細情報

型番	TPS62160DSGT
メーカー	TI
Additional Feature	ADJST O/P VOLT FRM 0.9V TO 6V; ALS OPRTS IN VOLT MODE AND PWM CTRL TECHNQ ALS POSBL
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	HYSTERETIC CURRENT MODE
Input Voltage-Max	17 V
Input Voltage-Min	3 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PDSO-N8
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Output Voltage-Max	6 V
Output Voltage-Min	0.9 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	0.8 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2250 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2 mm
