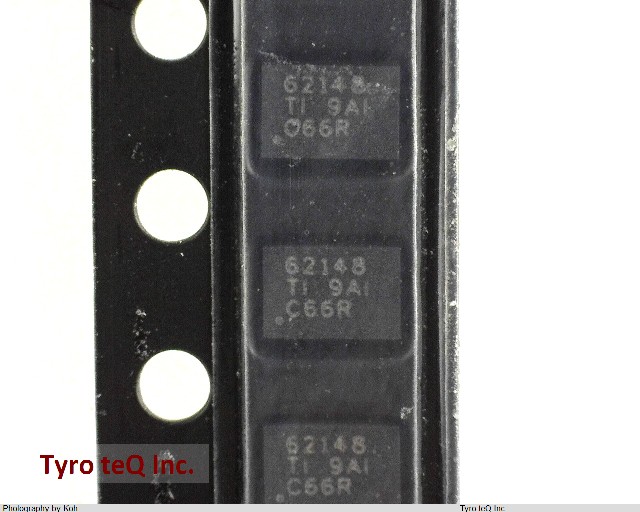

TPS62148RGXT

Name: TPS62148RGXT
Brand: TI
SKU: 300395864-0000-0000-0000

TPS62148RGXT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS62148RGXT の詳細情報

型番	TPS62148RGXT
メーカー	TI
Additional Feature	OUTPUT VOLTAGE= 0.7V TO 12V; ALSO OPERATES WITH PFM MODE
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT/VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	17 V
Input Voltage-Min	3 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PBCC-N11
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	11
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	12 V
Output Voltage-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HQCCN
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2500 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2 mm
