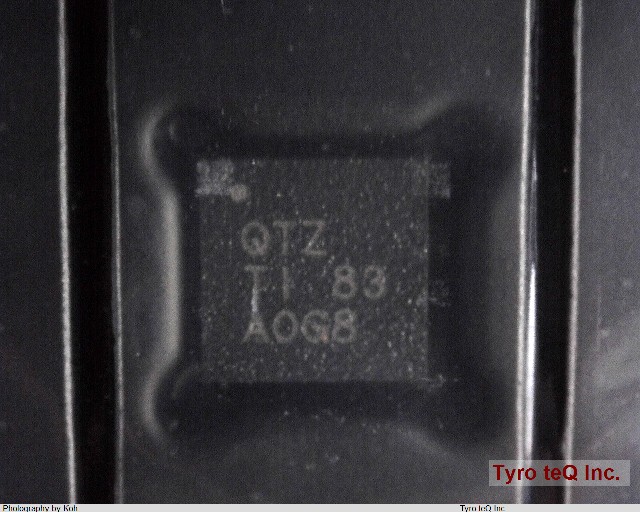

TPS62140RGTT

Name: TPS62140RGTT
Brand: TI
SKU: 300348961-0000-0000-0000

TPS62140RGTT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS62140RGTT の詳細情報

型番	TPS62140RGTT
メーカー	TI
Additional Feature	ADJST O/P VOLT FRM 0.9V TO 6V; ALS OPRTS IN VOLT MODE AND PWM CTRL TECHNQ ALS POSBL
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	HYSTERETIC CURRENT MODE
Input Voltage-Max	17 V
Input Voltage-Min	3 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	6.3 V
Output Voltage-Min	0.9 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2500 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
