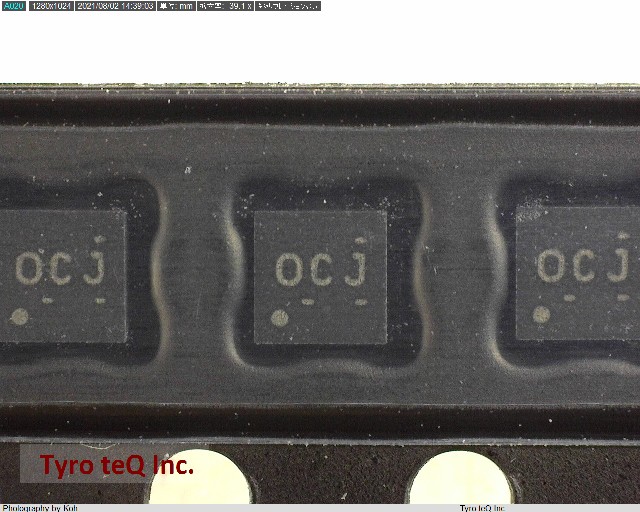

TPS61240DRVR データシート

Name: TPS61240DRVR
Brand: TI
SKU: 300293442-0000-0000-0000

TPS61240DRVR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS61240DRVR の詳細情報

型番	TPS61240DRVR
メーカー	TI
データシート
Additional Feature	ALSO HAS PFM CONTROL TECHNIQUE
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.3 V
Input Voltage-Nom	3.6 V
JESD-30 Code	S-PDSO-N6
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.45 A
Output Voltage-Max	5 V
Output Voltage-Min	5 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	3500 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2 mm
