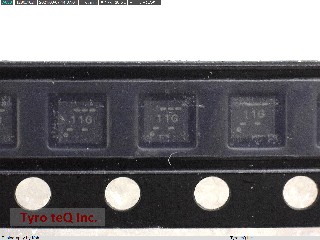

TPS61021ADSGR

Name: TPS61021ADSGR
Brand: TI
SKU: 300396012-0000-0000-0000

TPS61021ADSGR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS61021ADSGR の詳細情報

型番	TPS61021ADSGR
メーカー	TI
Additional Feature	ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 1.8 TO 4V
Analog IC - Other Type	SWITCHING REGULATOR
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	4.4 V
Input Voltage-Min	0.5 V
Input Voltage-Nom	2.4 V
JESD-30 Code	S-PDSO-N8
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	4 V
Output Voltage-Min	1.8 V
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Seated Height-Max	0.8 mm
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	2000 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Width	2 mm
