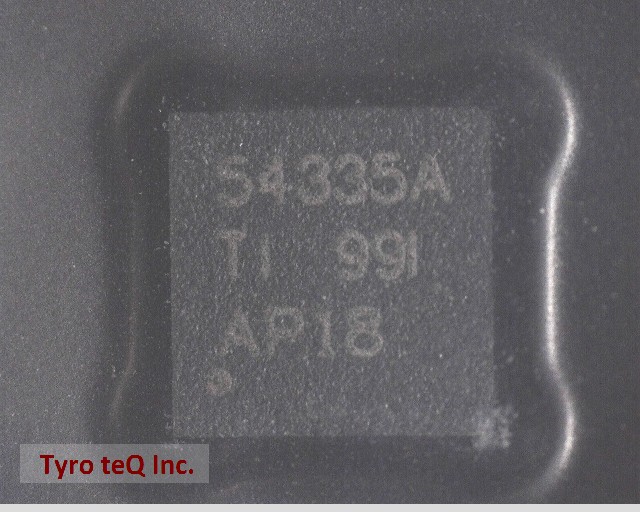

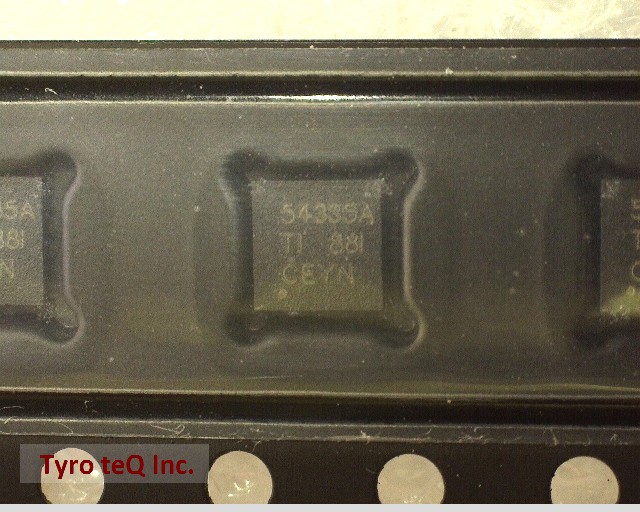

TPS54335ADRCR

Name: TPS54335ADRCR
Brand: TI
SKU: 300388438-0000-0000-0000

TPS54335ADRCR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS54335ADRCR の詳細情報

型番	TPS54335ADRCR
メーカー	TI
Additional Feature	OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.8V TO 24V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	28 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	24 V
Output Voltage-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1500 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
