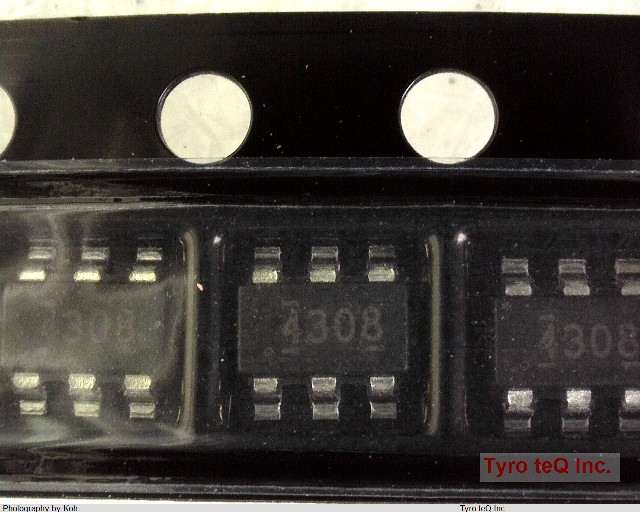

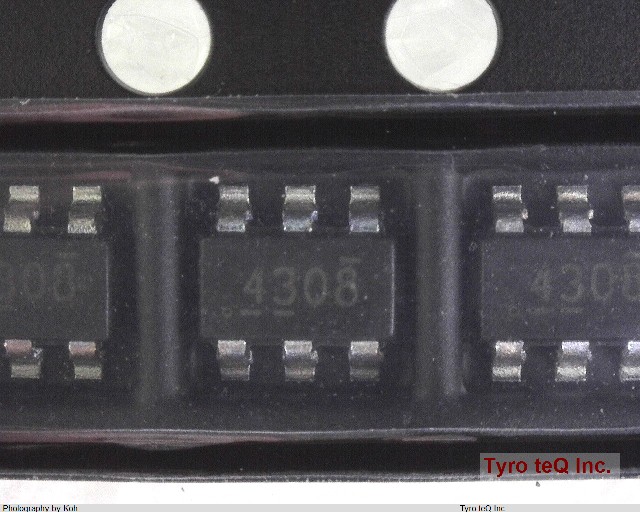

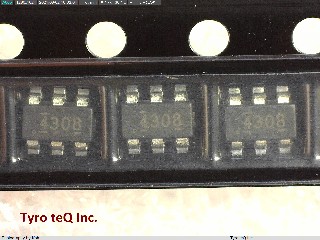

TPS54308DDCR

Name: TPS54308DDCR
Brand: TI
SKU: 300395852-0000-0000-0000

TPS54308DDCR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS54308DDCR の詳細情報

型番	TPS54308DDCR
メーカー	TI
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	28 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	26 V
Output Voltage-Min	1 V
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.1 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	350 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.6 mm
