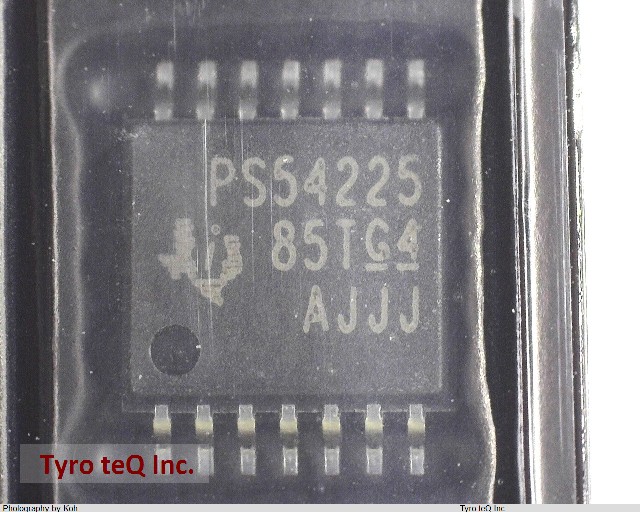

TPS54225PWPR

Name: TPS54225PWPR
Brand: TI
SKU: 300290472-0000-0000-0000

TPS54225PWPR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS54225PWPR の詳細情報

型番	TPS54225PWPR
メーカー	TI
Additional Feature	OPERATES IN ADJUSTABLE MODE FROM 0.76 TO 5.5V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	18 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	5 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2 A
Output Voltage-Max	5.5 V
Output Voltage-Min	0.76 V
Output Voltage-Nom	5.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Switching Regulator or Controllers
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	700 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
