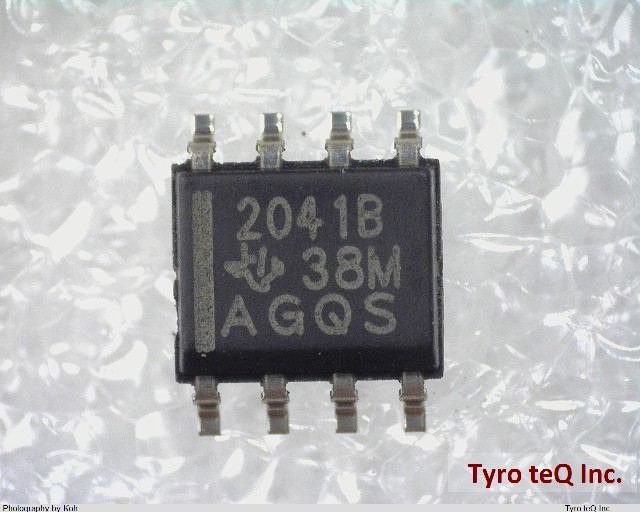

TPS2041BD データシート

Name: TPS2041BD
Brand: TI
SKU: 300031056-0000-0000-0000

TPS2041BD - TI の商品詳細ページです。

２営業日以内に回答いたします

TPS2041BD の詳細情報

型番	TPS2041BD
メーカー	TI
データシート
Additional Feature	UNDERVOLTAGE LOCKOUT
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Supply Current-Max (Isup)	0.07 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.6 mm
