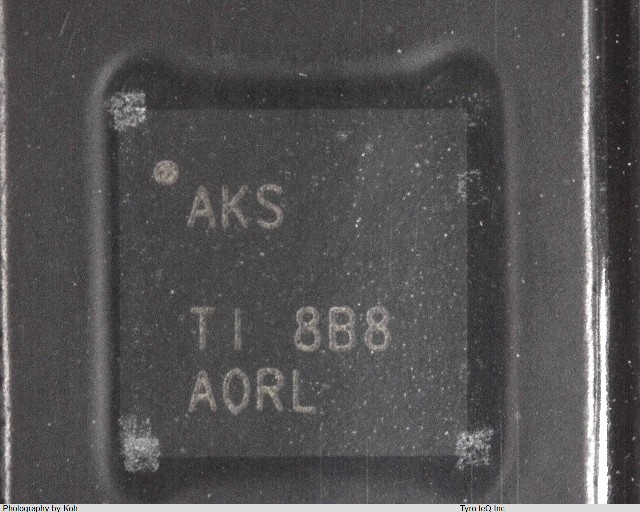

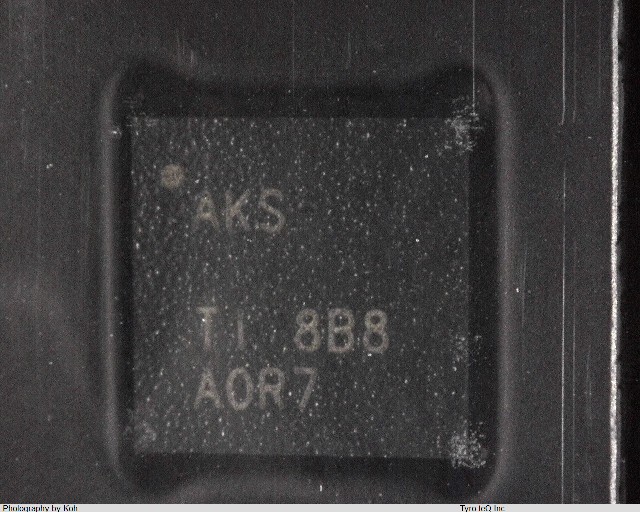

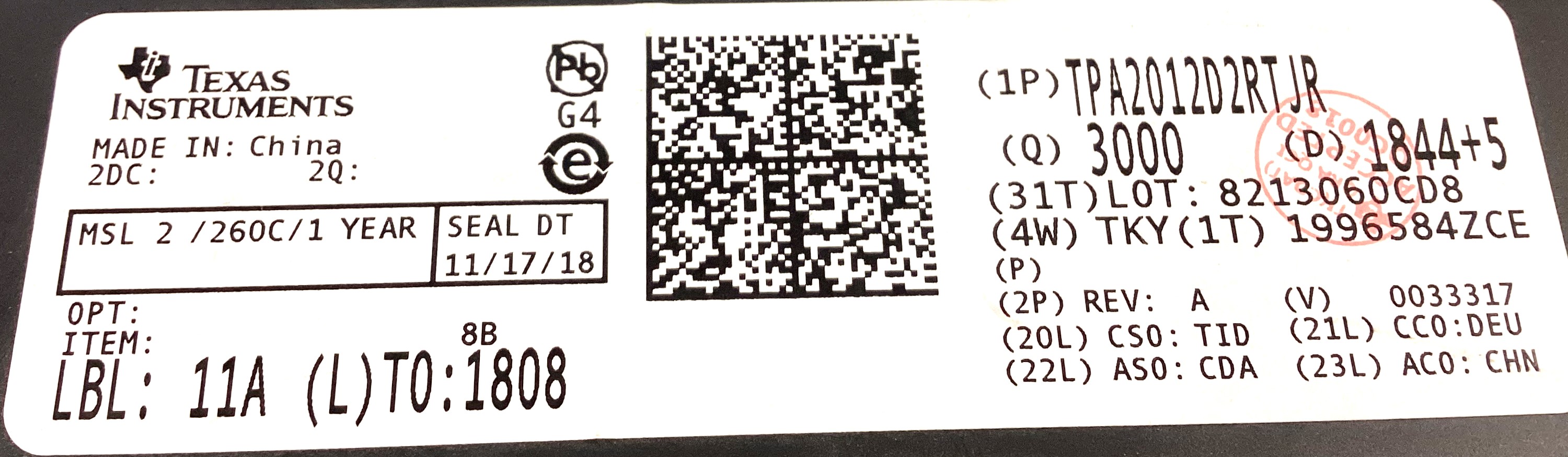

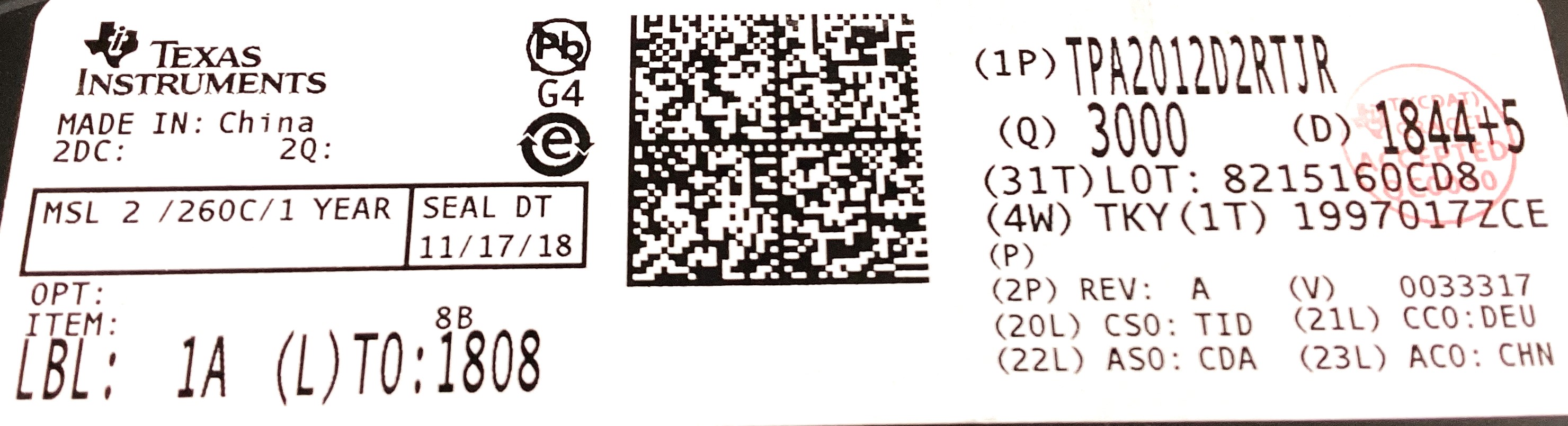

TPA2012D2RTJR データシート

Name: TPA2012D2RTJR
Brand: TI
SKU: 300030686-0000-0000-0000

TPA2012D2RTJR - TI の商品詳細ページです。

２営業日以内に回答いたします

TPA2012D2RTJR の詳細情報

型番	TPA2012D2RTJR
メーカー	TI
データシート
Bandwidth-Nom	20 kHz
Consumer IC Type	CLASS D AUDIO AMPLIFIER
Gain	24 dB
Harmonic Distortion	10 %
JESD-30 Code	S-PQCC-N20
JESD-609 Code	e4
Length	4 mm
Moisture Sensitivity Level	2
Noise Figure-Nom	95 dB
Number of Channels	2
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Power-Nom	2.1 W
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC20,.16SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Audio/Video Amplifiers
Supply Current-Max	9 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4 mm
