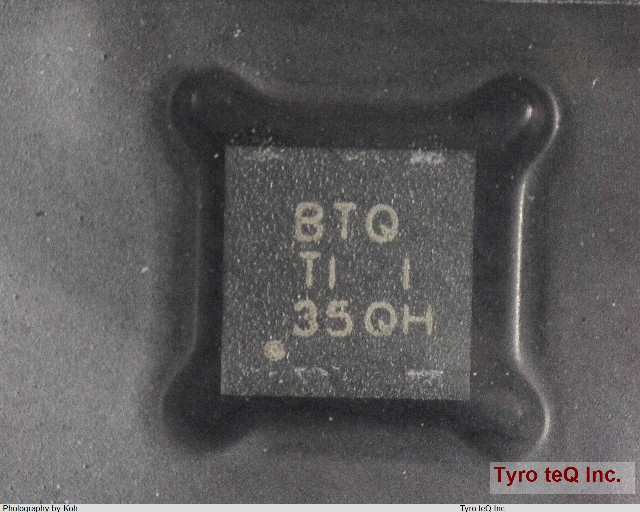

TPA2006D1DRBT データシート

Name: TPA2006D1DRBT
Brand: TI
SKU: 300129605-0000-0000-0000

TPA2006D1DRBT - TI の商品詳細ページです。

２営業日以内に回答いたします

TPA2006D1DRBT の詳細情報

型番	TPA2006D1DRBT
メーカー	TI
データシート
Bandwidth-Nom	20 kHz
Consumer IC Type	CLASS D AUDIO AMPLIFIER
JESD-30 Code	S-PQCC-N8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Noise Figure-Nom	97 dB
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Power-Nom	1.45 W
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	SOLCC8,.12,25
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Audio/Video Amplifiers
Supply Current-Max	4.9 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
