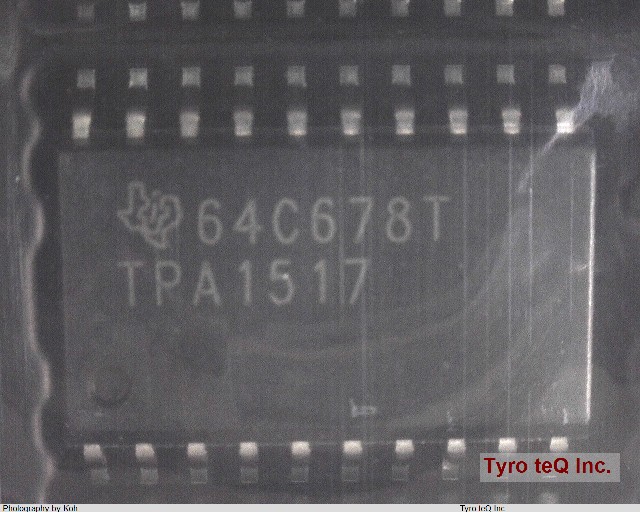

TPA1517DWP データシート

Name: TPA1517DWP
Brand: TI
SKU: 300010832-0000-0000-0000

TPA1517DWP - TI の商品詳細ページです。

２営業日以内に回答いたします

TPA1517DWP の詳細情報

型番	TPA1517DWP
メーカー	TI
データシート
Bandwidth-Nom	20 kHz
Consumer IC Type	AUDIO AMPLIFIER
Gain	20 dB
Harmonic Distortion	10 %
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	12.825 mm
Moisture Sensitivity Level	2
Noise Figure-Nom	84 dB
Number of Channels	2
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Power-Nom	6 W
Package Body Material	PLASTIC/EPOXY
Package Code	HSOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	9.5/18 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Audio/Video Amplifiers
Supply Current-Max	80 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	9.5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.52 mm
