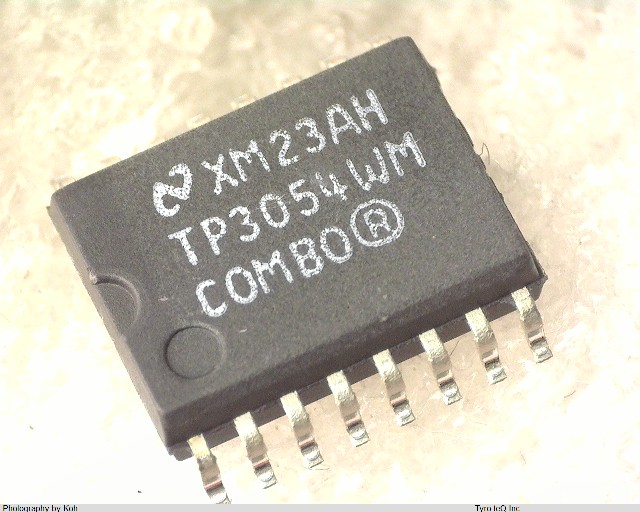

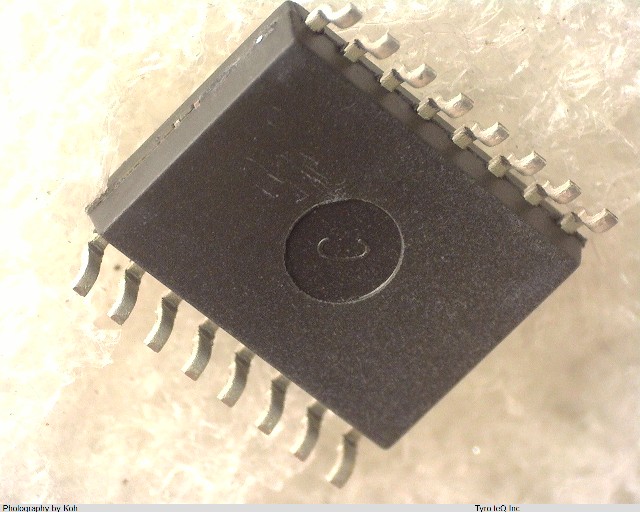

TP3054WM データシート

Name: TP3054WM
Brand: TI
SKU: 300391661-0000-0000-0000

TP3054WM - TI の商品詳細ページです。

２営業日以内に回答いたします

TP3054WM の詳細情報

型番	TP3054WM
メーカー	TI
データシート
Companding Law	MU-LAW
Filter	NO
Gain Tolerance-Max	0.15 dB
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Linear Coding	NOT AVAILABLE
Moisture Sensitivity Level	3
Neg Supply Voltage-Nom	-5 V
Number of Functions	1
Number of Terminals	16
Operating Mode	SYNCHRONOUS/ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Codecs
Supply Current-Max	0.009 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Telecom IC Type	PCM CODEC
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
