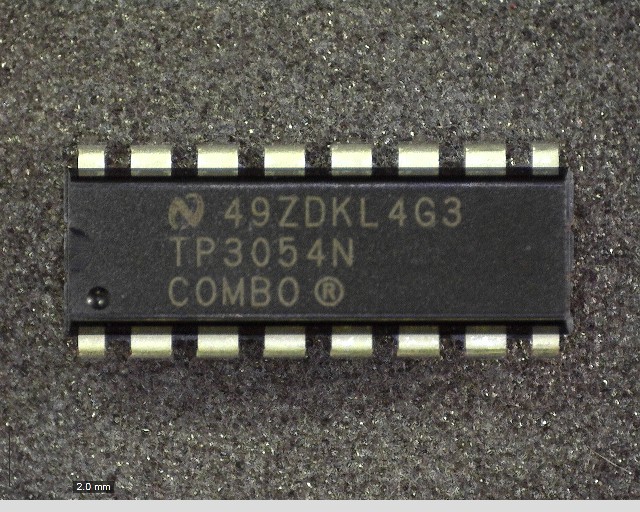

TP3054N データシート

Name: TP3054N
Brand: TI
SKU: 300390652-0000-0000-0000

TP3054N - TI の商品詳細ページです。

２営業日以内に回答いたします

TP3054N の詳細情報

型番	TP3054N
メーカー	TI
データシート
Companding Law	MU-LAW
Filter	YES
Gain Tolerance-Max	0.15 dB
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	18.805 mm
Linear Coding	NOT AVAILABLE
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom	-5 V
Number of Functions	1
Number of Terminals	16
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Codecs
Supply Current-Max	0.009 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Telecom IC Type	PCM CODEC
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	7.62 mm
