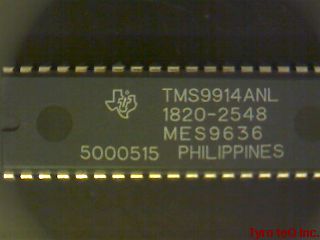

TMS9914ANL データシート

Name: TMS9914ANL
Brand: TI
SKU: 300006016-0000-0000-0000

TMS9914ANL - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS9914ANL の詳細情報

型番	TMS9914ANL
メーカー	TI
データシート
Address Bus Width	3
Clock Frequency-Max	5 MHz
Drive Interface Standard	IEEE 488
External Data Bus Width	8
JESD-30 Code	R-PDIP-T40
Length	52.455 mm
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Bus Controllers
Supply Current-Max	150 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, IEEE 488 (GPIB)
