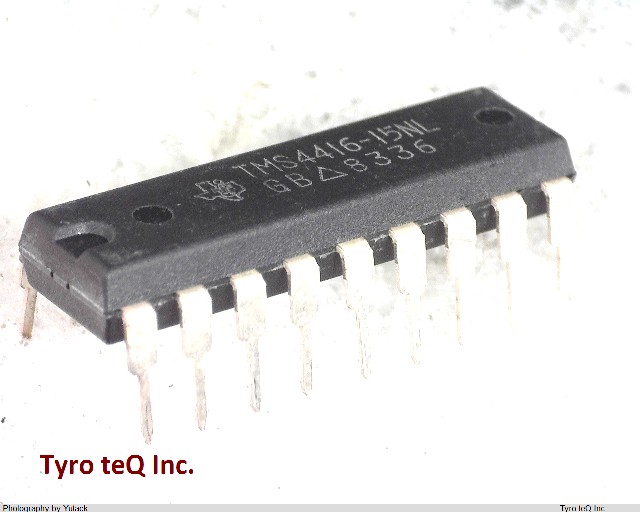

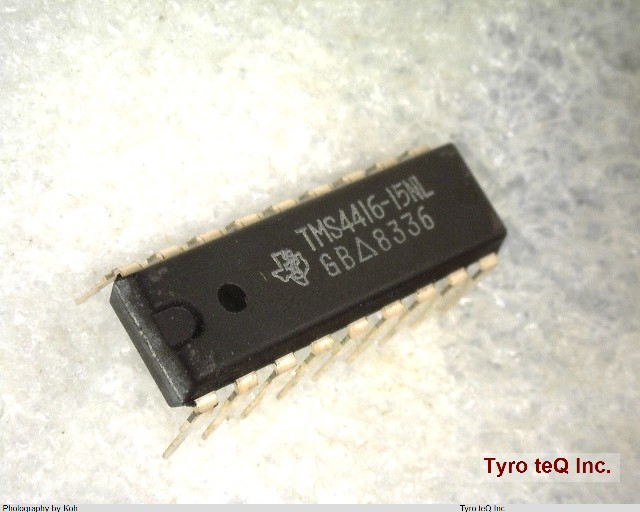

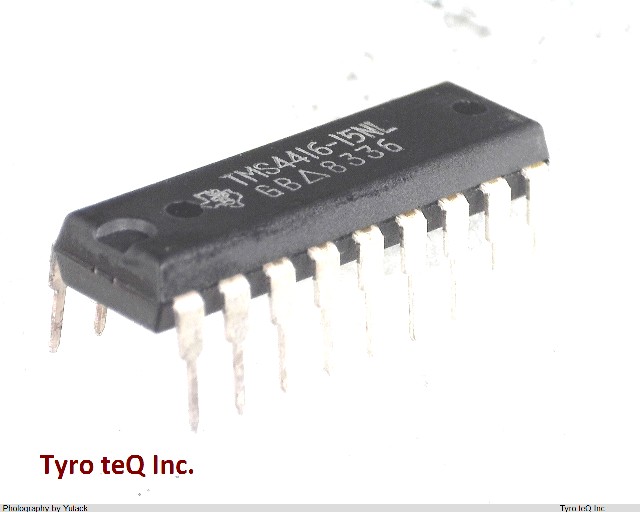

TMS4416-15NL データシート

Name: TMS4416-15NL
Brand: TI
SKU: 300002912-0000-0000-0000

TMS4416-15NL - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS4416-15NL の詳細情報

型番	TMS4416-15NL
メーカー	TI
データシート
Access Mode	PAGE
Access Time-Max	150 ns
Additional Feature	RAS ONLY REFRESH
I/O Type	COMMON
JESD-30 Code	R-PDIP-T18
Length	22.48 mm
Memory Density	65536 bit
Memory IC Type	PAGE MODE DRAM
Memory Width	4
Number of Functions	1
Number of Ports	1
Number of Terminals	18
Number of Words	16384 words
Number of Words Code	16K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	16KX4
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Refresh Cycles	256
Seated Height-Max	5.08 mm
Sub Category	DRAMs
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	NMOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
