TMS320VC33PGE150 データシート

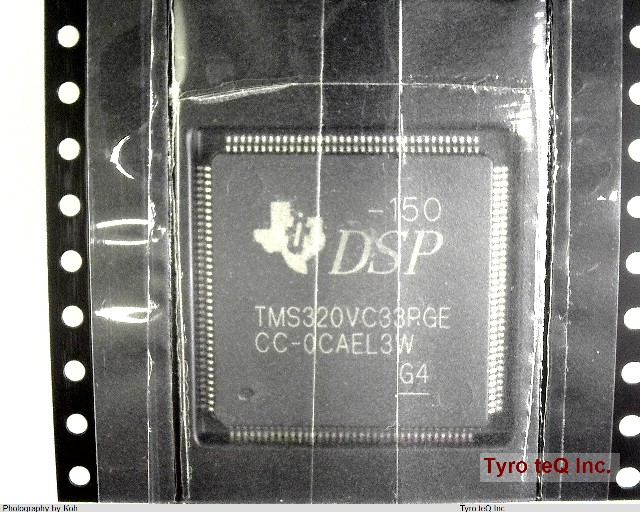

Name: TMS320VC33PGE150
Brand: TI
SKU: 300010502-0000-0000-0000

TMS320VC33PGE150 - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS320VC33PGE150 の詳細情報

型番	TMS320VC33PGE150
メーカー	TI
データシート
Additional Feature	ALSO OPERATES AT 3.3V SUPPLY
Address Bus Width	24
Barrel Shifter	YES
Bit Size	32
Boundary Scan	YES
Clock Frequency-Max	100 MHz
External Data Bus Width	32
Format	FLOATING POINT
Integrated Cache	YES
Internal Bus Architecture	MULTIPLE
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e4
Length	20 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of DMA Channels	1
Number of External Interrupts	4
Number of Terminals	144
Number of Timers	2
On Chip Data RAM Width	32
Operating Temperature-Max	90 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
RAM (words)	34816
Seated Height-Max	1.6 mm
Sub Category	Digital Signal Processors
Supply Current-Max	100 mA
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	20 mm
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
