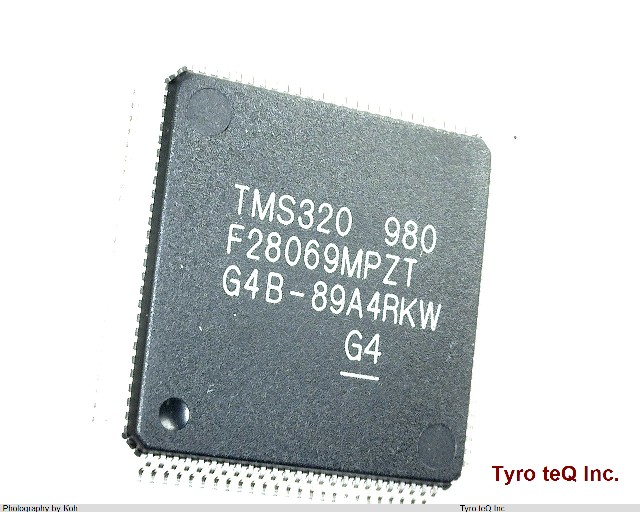

TMS320F28069MPZT Ti

TMS320F28069MPZT - TI の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TMS320F28069MPZT の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TMS320F28069MPZT
メーカーTI
A/D Converters 16-Ch 12-Bit
ADC Channels YES
Additional Feature IT HAS OTPROM OF 1K
Address Bus Width 0
Bit Size 32
Boundary Scan YES
CPU Family TMS320
Clock Frequency-Max 90 MHz
Connectivity CAN, I2C, SPI(2), UART(2), USB
DAC Channels NO
DMA Channels YES
Data EEPROM Size 0
External Data Bus Width 0
Format FLOATING POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e4
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 6
Number of External Interrupts 3
Number of I/O Lines 54
Number of Terminals 100
On Chip Program ROM Width 16
Operating Temperature-Max 105 Cel
Operating Temperature-Min -40 Cel
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel) 260
Peripherals BOR, COMPARATOR(3), DMA(6), POR, PWM(16), TEMPERATURE SENSOR, TIMER(3), WDT
Qualification Status Not Qualified
RAM (bytes) 102400
ROM (words) 131072
ROM Programmability FLASH
Screening Level AEC-Q100
Seated Height-Max 1.6 mm
Speed 90 rpm
Supply Current-Max 245 mA
Supply Voltage-Max 1.995 V
Supply Voltage-Min 1.71 V
Supply Voltage-Nom 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
