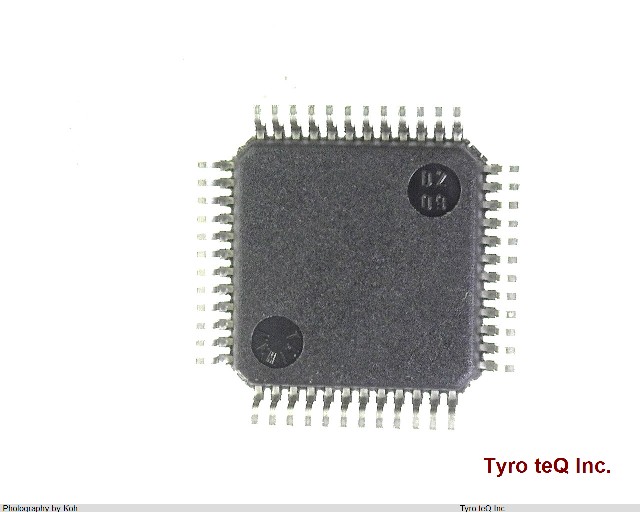

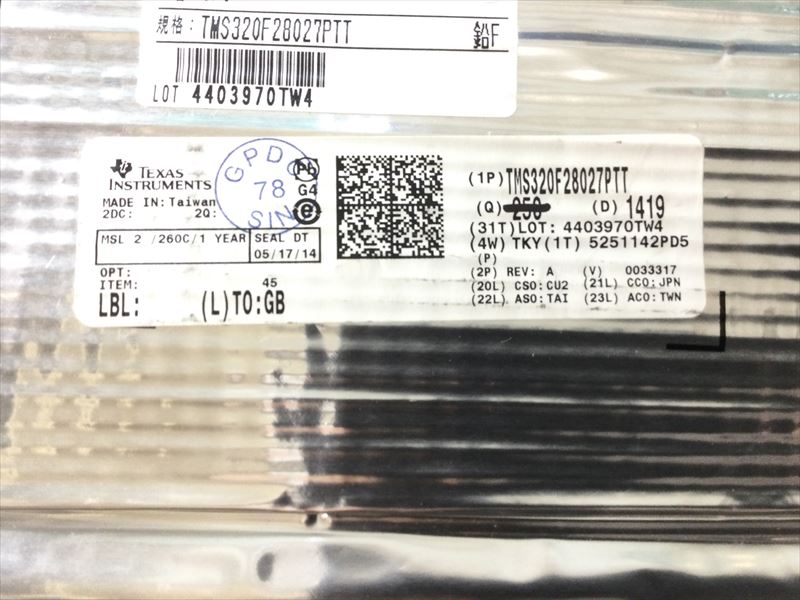

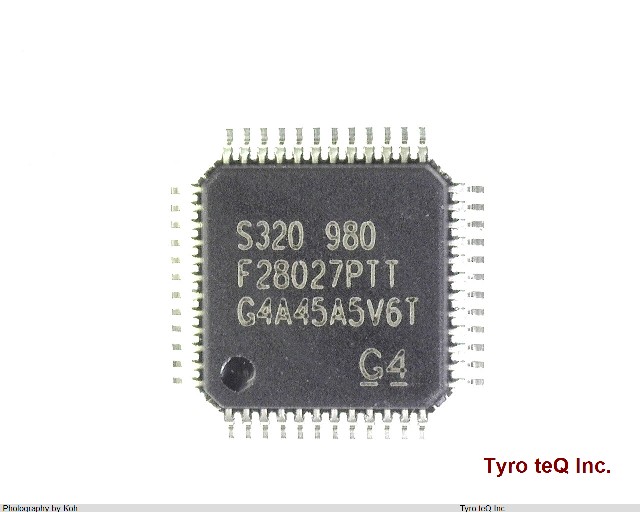

TMS320F28027PTT

Name: TMS320F28027PTT
Brand: TI
SKU: 400043852-0000-0000-0000

TMS320F28027PTT - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS320F28027PTT の詳細情報

型番	TMS320F28027PTT
メーカー	TI
A/D Converters	13-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
Boundary Scan	YES
CPU Family	TMS320
Clock Frequency-Max	60 MHz
Connectivity	"I2C, SCI, SPI, UART"
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G48
JESD-609 Code	e4
Length	7 mm
Low Power Mode	YES
Moisture Sensitivity Level	2
Number of External Interrupts	3
Number of I/O Lines	22
Number of Serial I/Os	1
Number of Terminals	48
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP48,.35SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	"BOR, COMPARATOR, POR, PWM(12), TEMPERATURE SENSOR, TIMER(3), WDT"
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	12288
RAM (words)	12
ROM (words)	32768
ROM Programmability	FLASH
Screening Level	AEC-Q100
Seated Height-Max	1.6 mm
Speed	60 rpm
Sub Category	Microcontrollers
Supply Current-Max	90 mA
Supply Voltage-Max	3.63 V
Supply Voltage-Min	2.97 V
Supply Voltage-Nom	3.3 V
