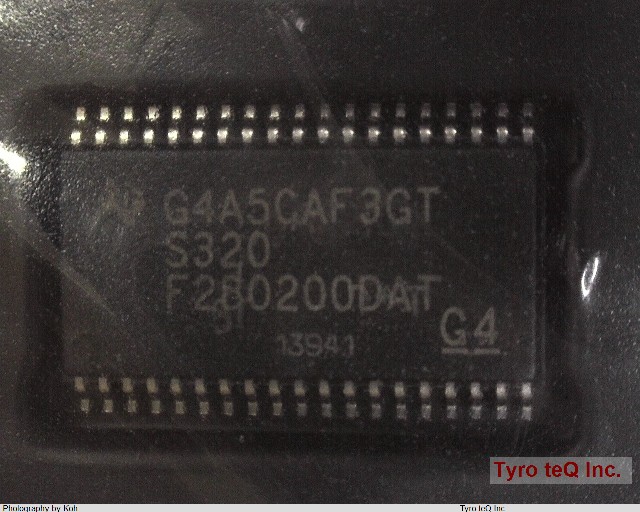

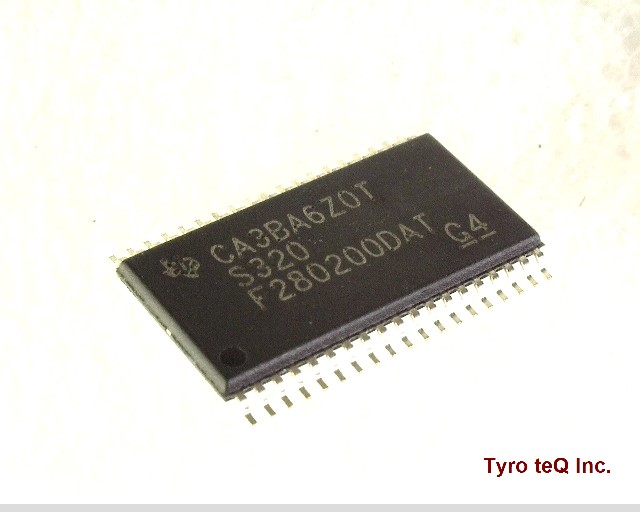

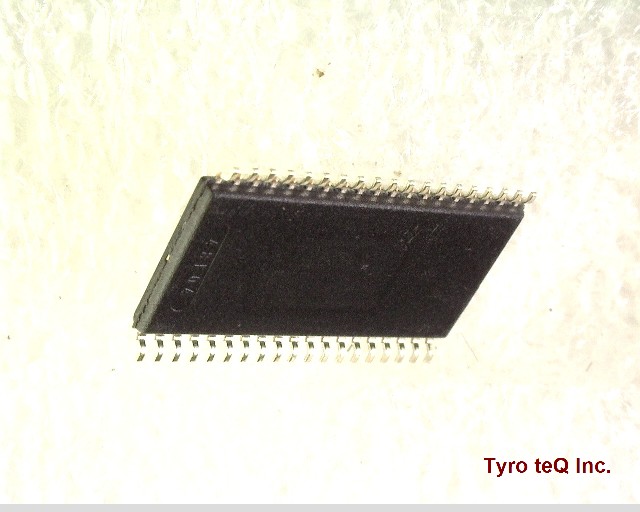

TMS320F280200DAT データシート

Name: TMS320F280200DAT
Brand: TI
SKU: 300321964-0000-0000-0000

TMS320F280200DAT - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS320F280200DAT の詳細情報

型番	TMS320F280200DAT
メーカー	TI
データシート
A/D Converters	7-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
Boundary Scan	YES
CPU Family	TMS320
Clock Frequency-Max	30 MHz
Connectivity	"I2C, SCI, SPI, UART"
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G38
JESD-609 Code	e4
Length	12.5 mm
Low Power Mode	YES
Moisture Sensitivity Level	2
Number of External Interrupts	3
Number of I/O Lines	20
Number of Serial I/Os	1
Number of Terminals	38
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP38,.32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	"BOR, COMPARATOR, POR, PWM(12), TEMPERATURE SENSOR, TIMER(3), WDT"
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	12288
RAM (words)	6
ROM (words)	8192
ROM Programmability	FLASH
Screening Level	AEC-Q100
Seated Height-Max	1.2 mm
Speed	40 rpm
Sub Category	Microcontrollers
Supply Current-Max	70 mA
Supply Voltage-Max	1.995 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
