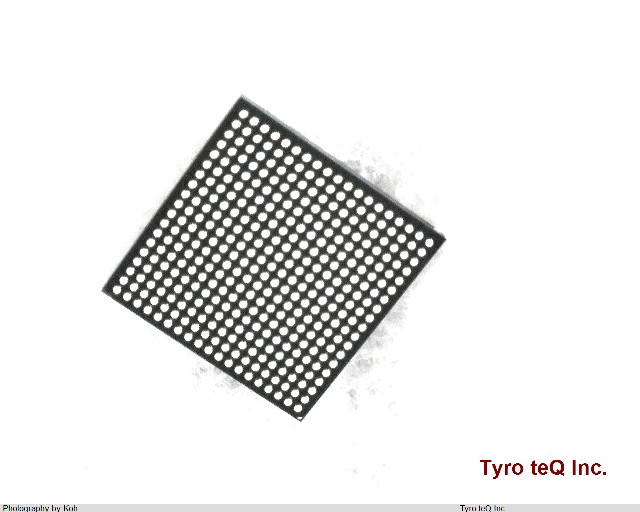

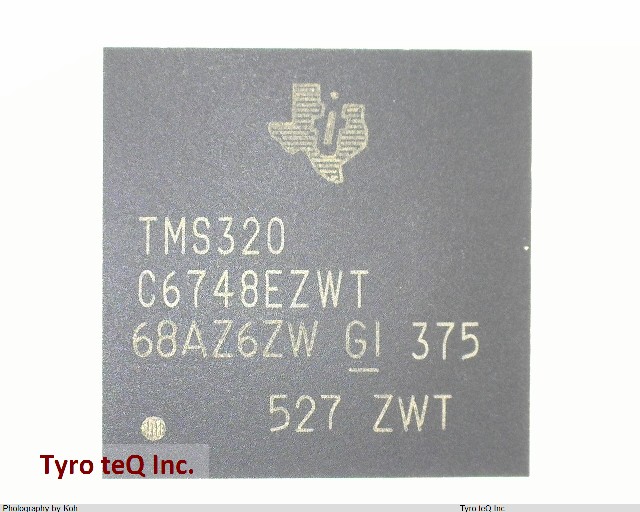

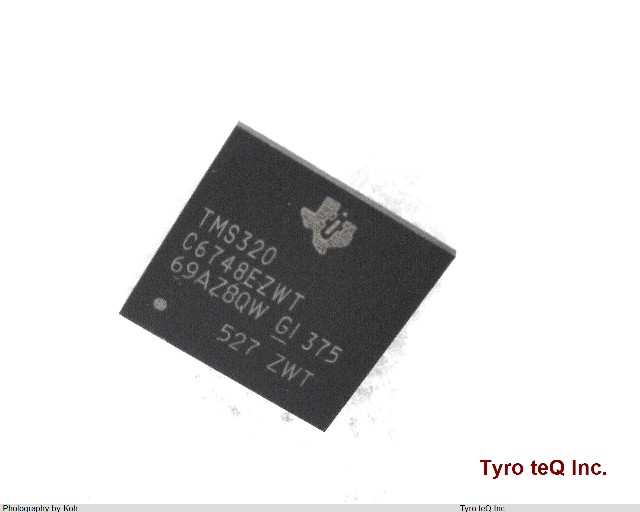

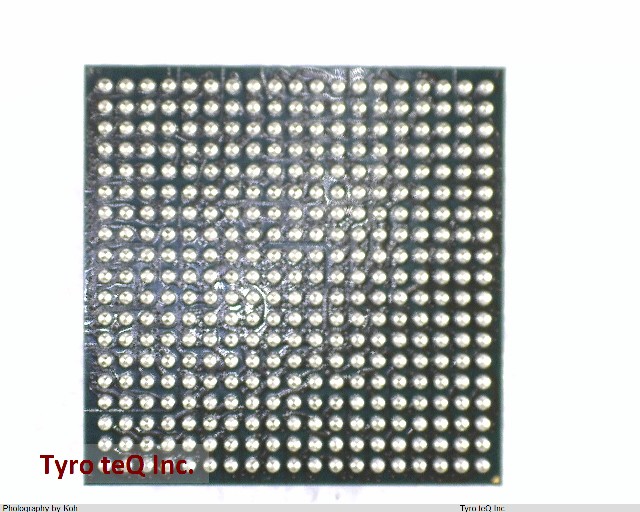

TMS320C6748EZWT3

Name: TMS320C6748EZWT3
Brand: TI
SKU: 400025715-0000-0000-0000

TMS320C6748EZWT3 - TI の商品詳細ページです。

２営業日以内に回答いたします

TMS320C6748EZWT3 の詳細情報

型番	TMS320C6748EZWT3
メーカー	TI
Additional Feature	1.2V ,1.1V AND 1.3 VOLT NOMINAL FREQUENCY ALSO AVAILABLE
Address Bus Width	14
Barrel Shifter	NO
Boundary Scan	YES
Clock Frequency-Max	30 MHz
External Data Bus Width	16
Format	FIXED POINT
Internal Bus Architecture	MULTIPLE
JESD-30 Code	S-PBGA-B361
JESD-609 Code	e1
Length	16 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Terminals	361
Operating Temperature-Max	90 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.4 mm
Supply Voltage-Max	1.05 V
Supply Voltage-Min	0.95 V
Supply Voltage-Nom	1 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	16 mm
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
