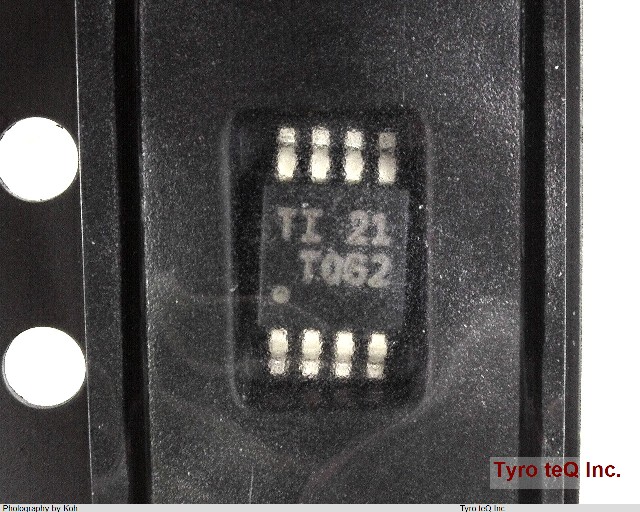

TLV9062IDGKR

Name: TLV9062IDGKR
Brand: TI
SKU: 300395942-0000-0000-0000

TLV9062IDGKR - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV9062IDGKR の詳細情報

型番	TLV9062IDGKR
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	5.0E-7 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	103 dB
Input Offset Voltage-Max	2000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.1 mm
Slew Rate-Nom	6.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.5 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	10000 kHz
Width	3 mm
