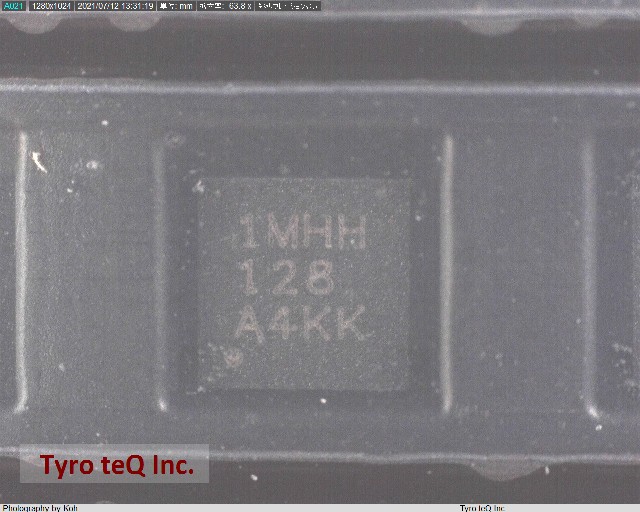

TLV75801PDRVR

Name: TLV75801PDRVR
Brand: TI
SKU: 300395351-0000-0000-0000

TLV75801PDRVR - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV75801PDRVR の詳細情報

型番	TLV75801PDRVR
メーカー	TI
Adjustability	ADJUSTABLE
Dropout Voltage1-Nom	0.095 V
Input Voltage-Max	6 V
Input Voltage-Min	1.5 V
JESD-30 Code	S-PDSO-N6
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	5.5 V
Output Voltage1-Min	0.55 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Surface Mount	YES
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Voltage Tolerance-Max	1 %
Width	2 mm
