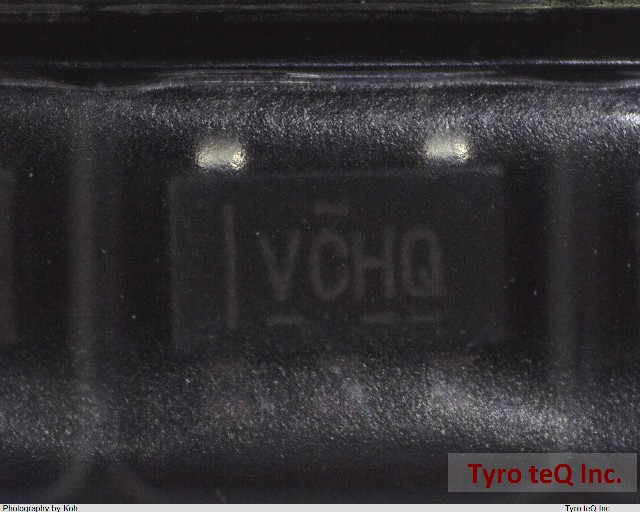

TLV73325PDBVT

Name: TLV73325PDBVT
Brand: TI
SKU: 300375786-0000-0000-0000

TLV73325PDBVT - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV73325PDBVT の詳細情報

型番	TLV73325PDBVT
メーカー	TI
Adjustability	FIXED
Dropout Voltage1-Max	0.29 V
Dropout Voltage1-Nom	0.122 V
Input Voltage-Max	5.5 V
Input Voltage-Min	1.4 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.3 A
Output Voltage1-Max	2.535 V
Output Voltage1-Min	2.465 V
Output Voltage1-Nom	2.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.45 mm
Surface Mount	YES
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	1.4 %
Width	1.6 mm
